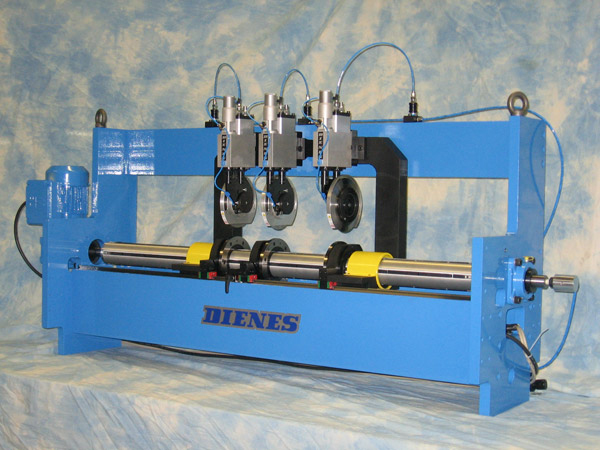

774620A Quick Set ET Slitting System

Dienes Quick Set ET Slitting System

This slitting system was utilized by a leading packaging company and custom thermoformer for the medical, pharmaceutical, food service, and retail industries. Edge condition and edge quality is of paramount importance along with maximizing blade life and having safe, quick setup capability.

Capabilities Applied/Processes

  • Positioning System Technology
  • Communication Protocol Technology
  • Variable Frequency Drive Technology
  • Pneumatic System Technology
  • Materials Technology
  • Fabrication/Manufacturing Technology
  • Manual Assembly
  • Electro–Mechanical Assembly
  • Testing
    • Programming
    • Functional Testing
  • Labeling
  • Inspection

Equipment Used to Manufacture System

  • Metal Cutting/Welding Equipment
  • Alloy Steel Heat Treating Equipment
  • CNC Turning Machines
  • CNC Milling Machines
  • CNC Grinding Machines
  • Precision Gaging Equipment
  • Electro-static Paint Finishing Equipment

Overall System Dimensions

58″ wide x 30″ high x 16″ deep

Positioning Accuracy

+/- 0.010″

Materials Used

  • Steel and Alloy Steel
  • Aluminum
  • Rubber
  • Plastic

Features

  • Main Electrical Control Box
  • Pneumatic Control Box
  • Handheld Positioning Control Box
  • Positioning Motors with Simultaneous Movement
  • Positioning Controller Boards
  • Variable Frequency Bottom Knife Motor
  • Dual shaft High speed Top Knife Holders
  • Heavy Duty Linear Bearings and Rails
  • High Precision Knives
  • Precision Depth Adjustment Control

In Process Testing Performed

  • First Piece Inspection of All Parts
    • All geometries – 100%
    • Surface Finish
  • Random 20% Inspection of Multiple Piece Lots
    • All geometries – 100%
    • Surface Finish
  • Machine Compliance to Customer Specification
  • Machine Performance to Customer Expectation

Industry for Use

Plastic Packaging Processing

Standards Utilized

  • ASTM
  • ASME
  • OSHA
  • NEMA
  • ANSI

Product Name

774620A Quickset ET Slitting System

Providing Custom Quotes on All Products. At Your Request.
