413126 Slitting System

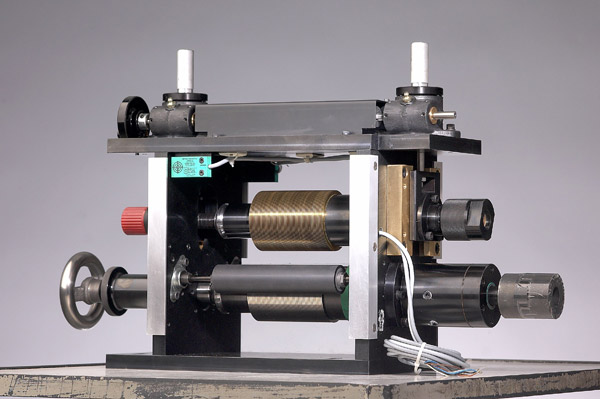

Dienes Slitting System

This slitting system was utilized by a leading manufacturer of sputtered precious metal films for the electronic testing components used in the medical industry. Edge condition and edge quality is of prime importance due to cost issues of the high value material being processed along with product reliability in performance.

Capabilities Applied/Processes

  • Camera/Vision System Technology
  • Positioning System Technology
  • Materials Technology
  • Fabrication/Manufacturing Technology
  • Manual Assembly
  • Electro–Mechanical Assembly
  • Testing
    • Programming
    • Functional Testing
    • Statistical Analysis
  • Labeling
  • Inspection

Equipment Used to Manufacture System

  • Metal Cutting/Welding Equipment
  • Alloy Steel Heat Treating Equipment
  • CNC Turning Machines
  • CNC Milling Machines
  • CNC Grinding Machines
  • Precision Gaging Equipment

Overall System Dimensions

  • 30″ wide x 20″ high x 18.5″ deep

Positioning Accuracy

  • +/- 0.0003″

Materials Used

  • Steel and Alloy Steel
  • Aluminum
  • Rubber
  • Plastic

Features

  • Dual Shaft Slitting Assembly
  • High Precision Shaft Positioning System
  • Micro-Adjust Side Load Setting Capability
  • Heavy Duty, High Precision Guide Way System
  • High Precision Knives
  • Super Finish Knives

In Process Testing Performed

  • First Piece Inspection of All Parts
    • All geometries – 100%
    • Surface Finish
  • Random 20% Inspection of Multiple Piece Lots
    • All geometries – 100%
    • Surface Finish
  • Machine Compliance to Customer Specification
  • Machine Performance to Customer Expectation

Industry for Use

  • Plastic Film Processing/Coating

Standards Utilized

  • ASTM
  • ASME
  • OSHA
  • NEMA
  • ANSI

Product Name

  • 413126 Slitting System
