DF19 Holder Slitting System

Dienes Holder Slitting System

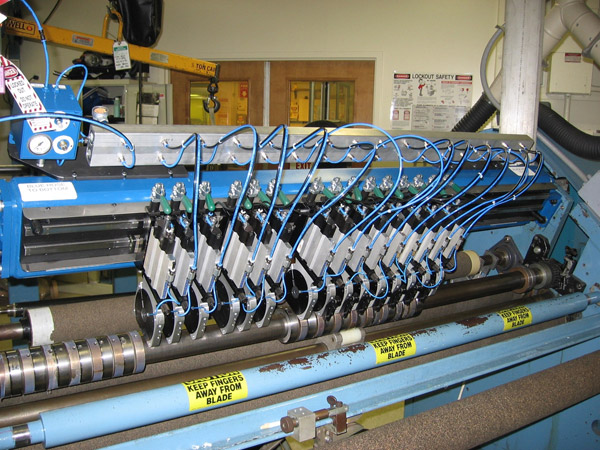

This slitting system was utilized by a leading manufacturer of polyester, polypropylene, and bio-based films for the packaging, graphics, industrial, aerospace, and electronics industries. Edge condition and edge quality is of paramount importance as individual slit lengths of material are butted together during assembly. Seams must therefore be perfect and contain no dust or slivers.

Capabilities Applied/Processes

  • Materials Technology
  • Fabrication/Manufacturing Technology
  • Manual Assembly
  • Electro–Mechanical Assembly
  • Testing
    • Functional Testing
  • Labeling
  • Inspection

Positioning Accuracy

  • +/- 0.010″

Materials Used

  • Steel and Alloy Steel
  • Aluminum
  • Rubber
  • Plastic

Features

  • Dual Shaft Slitting Holder Assemblies
  • Heavy Duty, High Precision Guide Way System
  • High Precision Knives
  • Precision Depth Adjustment Control
  • High Stiffness Slitting Head Assemblies

In Process Testing Performed

  • First Piece Inspection of All Parts
    • All geometries – 100%
    • Surface Finish
  • Random 20% Inspection of Multiple Piece Lots
    • All geometries – 100%
    • Surface Finish
  • Machine Compliance to Customer Specification
  • Machine Performance to Customer Expectation

Industry for Use

  • Plastic Film Processing

Standards Utilized

  • ASTM
  • ASME
  • OSHA
  • NEMA
  • ANSI

Product Name

  • DF19 Holder Slitting System

Providing Custom Quotes on All Products. At Your Request.
