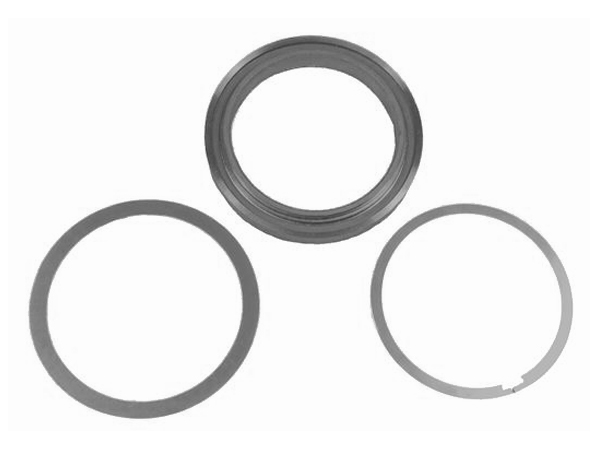

Slitting (or Cutting) Rings use a holder that has a removable cutting edge. This cutting edge is held in place with a snap ring. Both sides of the ring can be used for cutting. Once the edge is dull, you can discard the ring.
Circular Knife Slitting Rings
- High efficiency with both sides usable for cutting
- Exact manufacturing tolerances
Product Details
| Item # | Item Name | Outside Diameter | Inside Diameter | Thickness | Material | Dimensions |
|---|---|---|---|---|---|---|
| 22001 | Slitting Rings | 3.150 in (80 mm) | 2.677 in (68 mm) | 0.0196 in (0.5 mm) | 52100 | 3.149 x 2.677 x 0.020 in |
| 22518 | Bottom Knife Slitting Collar for 22001, Including Ring | 3.150 in (80 mm) | 2.36 in (60 mm) | 0.39 in (10 mm) | 52100 | 3.149 x 2.362 x 0.394 in |
| 02519 | Snap Ring for 22001 | N/A | N/A | N/A | N/A | N/A |
