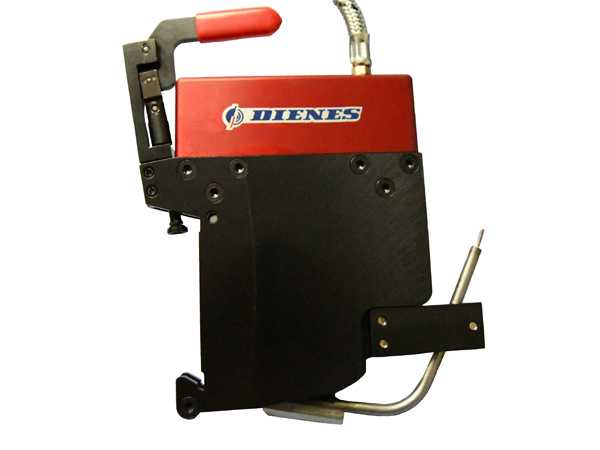

PQAS 1/2″ Heat Cut Knife Holder with Heat Cut Blade

One Year Warranty

  • Maintains side wall integrity at elevated temperatures
  • Custom-designed controller
  • Quick clamp
  • Minimum Slit Width: 12.7 mm/1/2 (0.500) in
Request Info Compare Products

PQAS 1/2″ Heat Cut Knife Holder with Heat Cut Blade

Product Details

PQAS ½” Knife Holder with Heat Cut Blade is designed with a fabricated steel pneumatic cylinder, maintaining side wall integrity even at elevated temperatures. This holder employs the same mounting dimensions as all the DIENES PQA- style holders and can be interchanged on the same dovetail bars. PQAS ½” holders come standard with the same pneumatic connections DIENES offers on all PQAS style holders. Both holders are able to produce 55 pounds force when 90 PSI is applied to the holder.

These holders are available with custom-designed controllers feeding back knife temperature. The controllers are capable of controlling the power to the knife, maintaining temperatures as the web speed changes. Web speeds are dependent on materials being slit and the rate of heat transfer.

PQAS 1/2 holder is capable of slitting down to 1/2 in (0.500 in/12.7 MM) slit widths whether slitting film or woven synthetic materials. This style holder allows the binding together of woven material slit edges, through a heating element. Blade heats to 750 degrees C.

Item # Item Name Dienes Part #
02310 90 Watt Heat Cut Element 02310
021978 120 Watt Heat Cut Element 021978
02808 Electro Cable (Wire) 02808
02041-09 Air Hose Assembly (with Quick Disconnect) 02041-09
02120-09 Coupling (Quick Disconnect) 02120-09
02041 Air Hose without Coupling 02041
Item # Item Name Dienes Part #
02219 PQAS 1/2″ Holder with Heat Cut Blade 02219

PQAS 1/2″ Heat Cut Knife Holder with Heat Cut Blade
