Item # | Item Name | Dienes Part # | |
---|---|---|---|
021253 | DF-145 T-Bar Mount Shear Cut Holder | 021253 |

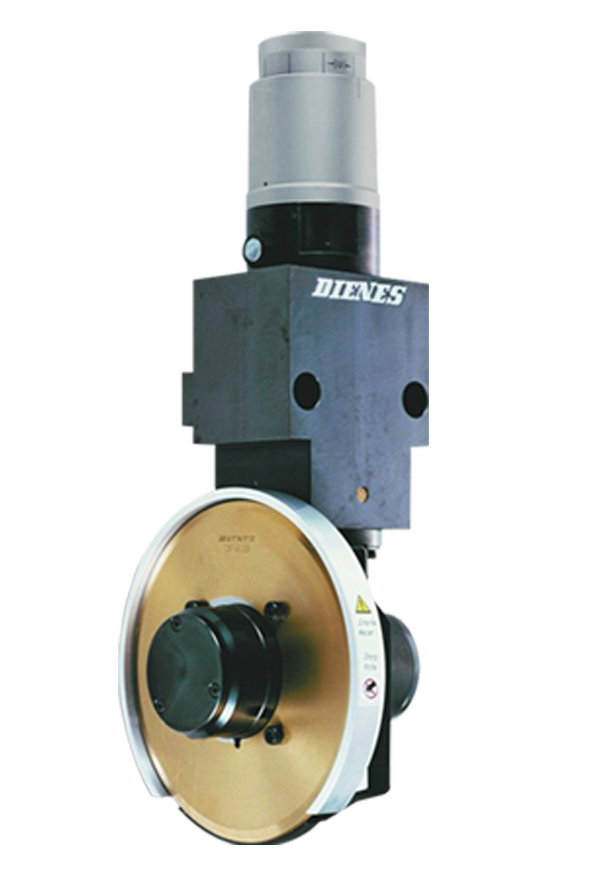

DF-145 Shear Cut Holder
The DF-145 shear cut top knife holder is an extremely rugged, high speed pneumatic circular knife holder designed for the paper mill environment but it is equally suitable for use on thick gauge materials and most any demanding application. You can cut single or multiple layer paper down to 145mm (5.71”) widths at web speeds of up to 2,743 meter per minute (9,000 feet per minute). The DF-145 incorporates a double shaft guidance system for vibration damping and maximizing top knife holder rigidity which results in cleaner slits and longer circular knife life. A micrometer adjustment device allows for precise depth control setting to ensure the highest slitting quality. The DF-145 holder is also available with the unique Dienes Constant Side Load lower head design which allows for precise setting of side contact force between the top and bottom circular knives in order to maximize knife life and edge cut quality. The circular top knife holder weighs 16kg (35.3 lbs) and is designed with a 6 mm (0.24”) horizontal side stroke that minimizes setup efforts. Additional features include choice of T-bar or linear bearing mounts, precision cant angle plates, 360 degree blade guard, quick change lower circular knife head, optional Easy-Set tab, optional oil wick, 180mm (7.10”) or 200mm (7.88”) diameter circular blades and a TWO YEAR WARRANTY! When your operation requirements demand slitting know-how, rugged and durable performance, higher speed, and longer life – there is only one place to call – Dienes.
Accessories
- 360° Guard – for operator safety
- Oil Wicks – for blade lubrication
- Vacuum Guard – to minimize slitting dust
- ES-Tab – for bottom knife alignment on Center Linear Bearing mounting system
- Spanner Wrench – for PQG holders only
- Knife removal guards
Item # | Item Name | Dienes Part # | |
---|---|---|---|
1 | Housing | N/A | |
2 | Vertical Axle | 245A423001002 | |
3 | Nut | 245C060367010/245C060826010 | |
4 | End Stop | 245C060826010 | |
5 | Cylinder Cover | 245C080363010/022011 | |
6 | Sleeve | 245C360A01001/021619 | |
7 | Piston | 245C050362010/021616/021887 | |
8 | Coiled Spring | 0FFEDER048001/653660 | |
9 | Washer | 234E020061010 | |
10 | Guide Shaft | 245C020364010/021617/021888 | |
11 | Protective Cap | 245A759001001 | |
12 | Retaining Ring | 0D00472048001/021567 | |
13 | Bearing Case | 0FKUGBU016001/021620 | |
14 | Piston Seal | 0FWDICH050001/022179 | |
15 | Airzet Ring PR16 | 0FWDICH016002/022184 | |
16 | Dirt Wiper | 0FSCHMU035001/021273 | |
17 | O-Ring | 0FORING050001/022180 | |
18 | O-Ring | 0FORING010001/022185 | |
19 | O-Ring | 0FORING054004/022186 | |
20 | Dowel Pin | 0FSTIFT002021 | |
21 | Gasket A5.5 x 8 Cu/Gasket, Copper | 0D07603005001/652971 | |
22 | Socket Head Cap Screw | 0D00912005005/613566 | |
23 | Socket Head Cap Screw | 0D00912005007/613574 | |
24 | Socket Head Cap Screw | 0D00912005003/022128 | |
25 | Socket Head Cap Screw | 0D00912006002/613628 | |
26 | Dowel Pin (Heat Treat) | 0D06325004001 | |
27 | Coiled Spring | 0FFEDER027001/022013 | |
28 | Cylinder Cover | 245B738A01001/022012 | |
29 | Piston Seal | 0FWDICH045001/022178 | |
30 | Socket Head Cap Screw | 0D00912004002 | |
31 | Airzet Piston Seal | 0FWDICH035001/02621 | |
32 | Socket Head Cap Screw | 0D00912004004/613512 | |
33 | Rod Seal 35 x 42 x 4/Rod Seal PR35 | 0FWDICH035002 | |
34 | Deep Groove Ball Bearing | 6203-2Z/22509 | |
35 | Cover | 245B070182010/02371 | |
36 | Washer | 234E000043070/021625 | |
37 | Axle | 245B050764010/021274 | |
38 | Retaining Ring | 0D00471017001/22070 | |
39 | Retaining Ring | 217B000052010/02375 | |
40 | Socket Head Cap Screw | 0D06912004004 | |
41 | Cylinder Cover | 245B070763010/021890 | |
42 | Knife Carrier | 245B110675020/02898 | |
43 | O-Ring | 0FORING045001/02241 | |
44 | Top Knife (DBL. BEV.) | 231G180247010/021707 | |
45 | Socket Head Cap Screw | 0D00912006019/613616 | |
46 | 360º Bracket | 245C110790010/021924 | |
47 | Protective Cover | 245C160797010/021964 | |
48 | Knife Guard | 245A000200100/02644 | |
49 | Socket Head Cap Screw | 0D00912005005/613566 | |
021707 | Replacement Circular Knife, D2 Material for DF-145 | 021707 | |
022222 | 360 Degree Guard | 022222 | |
022103 | Detent Pin | 022103 | |
021565 | Seal Kit for DF-145 | 021565 | |
021305 | Air Hose Assembly (with Quick Disconnect) for DF-145 | 021305 | |
021894 | Coupling (Quick Disconnect) for DF-145 | 021894 | |
1295 | ES-Tab™ for DF-145 | 1295 |
