PSG115-140 Shear Cut Holder

Two Year Warranty

  • Stable “workhorse” design
  • Shear angle plate for easy recognition of the shear angle
  • Robust applications
  • Minimum Slit Width: 115mm/4.528 in
  • Knife Diameter: 140mm/5.512 in
  • Web Speed: 5,000 ft/min
Request Info Compare Products

PSG115-140 Shear Cut Holder

Product Details

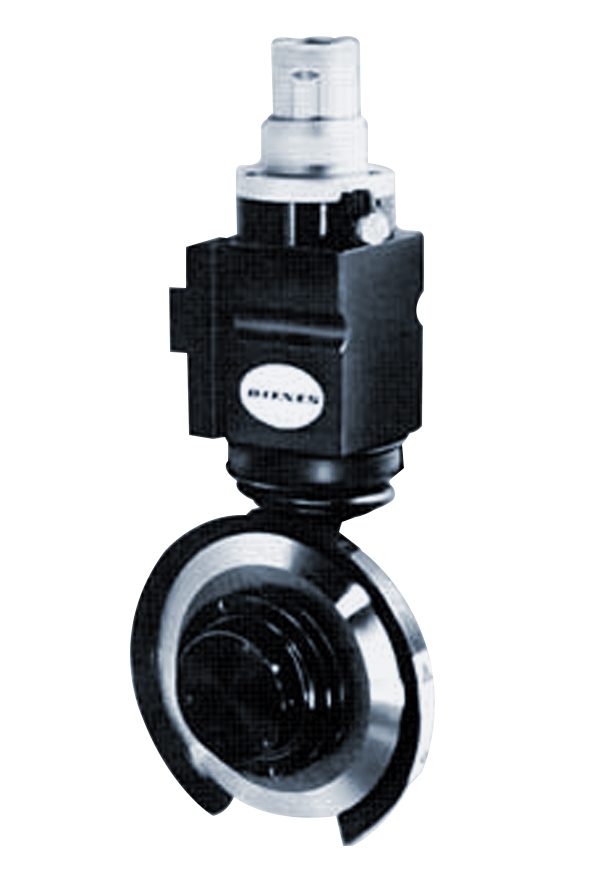

PSG-115-140 shear cut top knife holder has long been considered to be a “workhorse” of the slitting industry because of its ruggedness, long life, and quality of cut. The holder can cut a wide variety of heavy materials with slit widths down to 115mm (4.528 in) while operating at line speeds up to 1,524 m/min (5,000 ft/min). Capable of mounting on a T-bar, dovetail, or any other mounting configuration, the circular top knife holder weighs 8.9kg (19.6 lbs.) and is designed with a 3mm (0.118 in) horizontal side stroke that minimizes setup efforts.

PSG-115-40 knife holder also includes an adjustable stop that easily changes the side force between top and bottom circular knives in order to maximize knife life and edge cut quality. PSG-114-40 features include optional Easy-Set tab, durable dual row bearing lower head design, 140mm (5.512 in) diameter circular blade.

Item # Item Name Dienes Part #
1 Housing 22547
2 Complete Axle 02610
3 Protective Cover 021621
4 Cylinder Cover 021622
5 Adjustment Sleeve 021623
6 Piston 021624
7 Pressure Spring 021406
8 Nut 245C040442010
9 Knife 02055-01
10 Annular Ring Nut 22645
11 Dished Spring 02051-09
12 Knife Carrier 02161-09
13 Cylinder Cover 02371
14 Separator Disc 021625
15 Cylinder Cover 02373
16 Horizontal Axle 021626
17 Distance Disc 021627
18 Pressure Spring 02613
19 Adjusting Hand Screw 02066-09
20 Hand Nut 22631
21 Airzet Ring 02052-09
22 Airzet Ring 02052-09
23 Airzet Ring 02052-09
24 Airzet Ring 02052-09
25 O-Ring 02052-09
26 O-Ring 02052-09
27 Snap Ring 02697
28 Snap Ring 02072-09
29 Snap Ring 02375
30 Socket Cap Screw 02070-09
31 UFK Screw 02068-09
32 Disc 021628
33 Ball Bearing 02509
34 Snap Ring N/A
35 Socket Cap Screw 02686
36 Socket Cap Screw 613566
37 O-Ring 02052-09
38 Knife Guard 02267
39 Socket Cap Screw 0D00912005008
40 Gasket 02687
41 Bellow 02155-09
42 Vertical Axle Key 02736
43 ES-Tab 021858
02139-01 Replacement Circular Knife for PSG-115-140 02139-01
02052-09 Complete Seal Kit for PSG-115-140 02052-09
02134-09 Air Hose Assembly for PSG-115-140 02134-09
02170 Coupling (Quick Disconnect) for PSG-115-140 02170
Item # Item Name Dienes Part #
02025-01 PSG-115-140 Shear Cut Holder 02025-01
