Item # | Item Name | Dienes Part # | |
---|---|---|---|
021527 | PSG-115-180 Dovetail Mount Shear Cut Holder | 021527 |

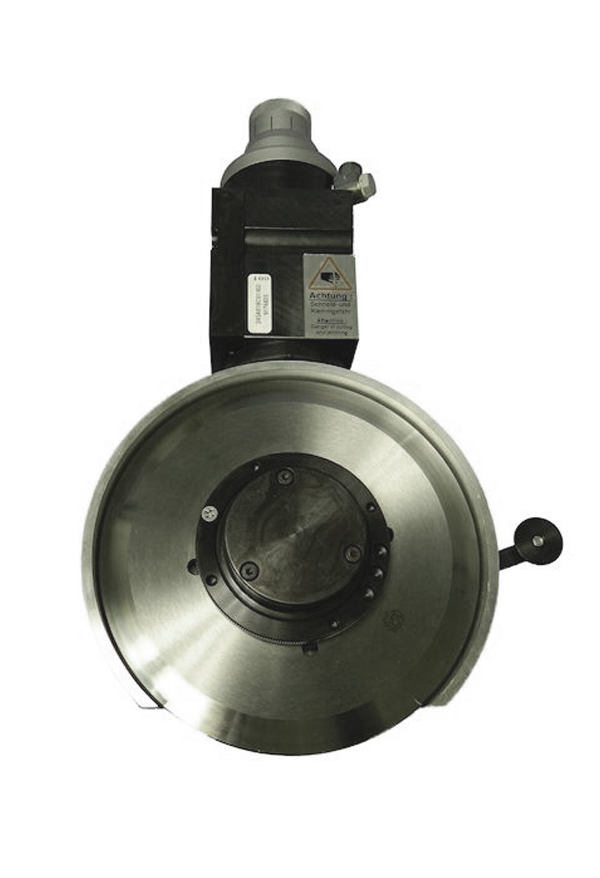

PSG-115-180 Shear Cut Holder
The PSG-115-180 shear cut top knife holder is considered to be a “workhorse” of the slitting industry because of its ruggedness, long life, and quality of cut. The holder can cut a wide variety of heavy materials with slit widths down to 115mm (4.56”) while operating at line speeds up to 1,905 meters per minute (6,250 feet per minute). Capable of mounting on a T-bar, dovetail, or any other mounting configuration, the circular top knife holder weighs 9.1kg (20.1 lbs) and is designed with a 3mm (0.12”) horizontal side stroke that minimizes setup efforts. This top knife holder also includes an adjustable stop that easily changes the side force between top and bottom circular knives in order to maximize knife life and edge cut quality. Features include optional Easy-Set tab, durable dual row bearing lower head design, 180mm (7.09”) diameter circular blade and a TWO YEAR WARRANTY! When your operation requirements demand slitting know-how, heavy duty performance, and long life – call Dienes for answers.
Accessories
- 360° Guard – for operator safety
- Oil Wicks – for blade lubrication
- Vacuum Guard – to minimize slitting dust
- ES-Tab – for bottom knife alignment on Center Linear Bearing mounting system
- Spanner Wrench – for PQG holders only
- Knife removal guards
Item # | Item Name | Dienes Part # | |
---|---|---|---|
1 | Housing | 22547 | |
2 | Vertical Axle | 02747 | |
3 | Protective Cover | 021621 | |
4 | Cylinder Cover | 021622 | |
5 | Adjustment Sleeve | 021623 | |
6 | Piston | 021624 | |
7 | Pressure Spring | 021406 | |
8 | Nut | 245C040442010 | |
9 | Top Knife | 021707 | |
10 | Annular Ring Nut | 22645 | |
11 | Dished Spring | 02051-09 | |
12 | Knife Carrier | 02161-09 | |
13 | Cylinder Cover | 02371 | |
14 | Separator Disc | 021625 | |
15 | Cylinder Cover | 02373 | |
16 | Horizontal Axle | 021626 | |
17 | Distance Disc | 021627 | |
18 | Pressure Spring | 02613 | |
19 | Adjusting Hand Screw | 02066-09 | |
20 | Hand Nut | 22631 | |
21 | Airzet Ring | 02052-09 | |
22 | Airzet Ring | 02052-09 | |
23 | Airzet Ring | 02052-09 | |
24 | Airzet Ring | 02052-09 | |
25 | O-Ring | 02052-09 | |
26 | O-Ring | 02052-09 | |
27 | Snap Ring | 217B000052010/02697 | |
28 | Snap Ring | 0D00471020001/02072-09 | |
29 | Snap Ring | 22070 | |
30 | Socket Cap Screw | 0D06912004003/02070-09 | |
31 | UFK Screw | 0FSCHRA004002/02068-09 | |
32 | Disc | 234E030036020/021628 | |
33 | Ball Bearing | 0D00625017001/02509 | |
34 | Snap Ring | 0D00472029001 | |
35 | Socket Cap Screw | 613728 | |
36 | Socket Cap Screw | 0D00912005005/613566 | |
37 | O-Ring | 0FORING034003 | |
38A | Knife Guard | 245A623003001/021965 | |
38B | Knife Guard with ES Tab | 245A623001001/021965 | |
39 | Socket Cap Screw | 0D00912005008 | |
40 | Gasket | 0FDICHT010001/02687 | |
41 | Bellow | 00FFBALG029001/02155-09 | |
42 | Vertical Axle Key | 234C110033010/02736 | |
021707 | Replacement Circular Knife | 021707 | |
02052-09 | Complete Seal Kit for PSG-115-180 | 02052-09 | |
02134-09 | Air Hose Assembly for PSG-115-180 | 02134-09 | |
02170 | Coupling (Quick Disconnect) for PSG-115-180 | 02170 |
