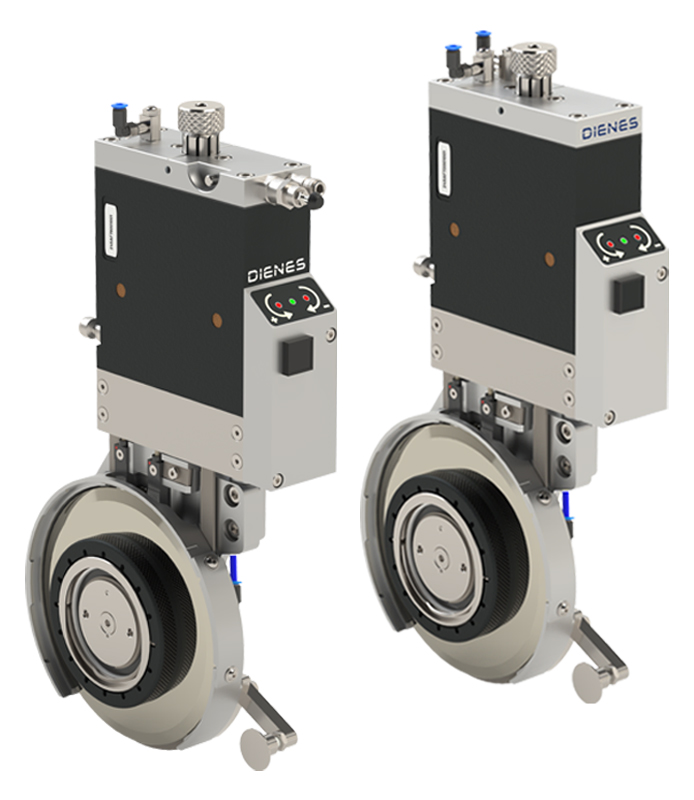

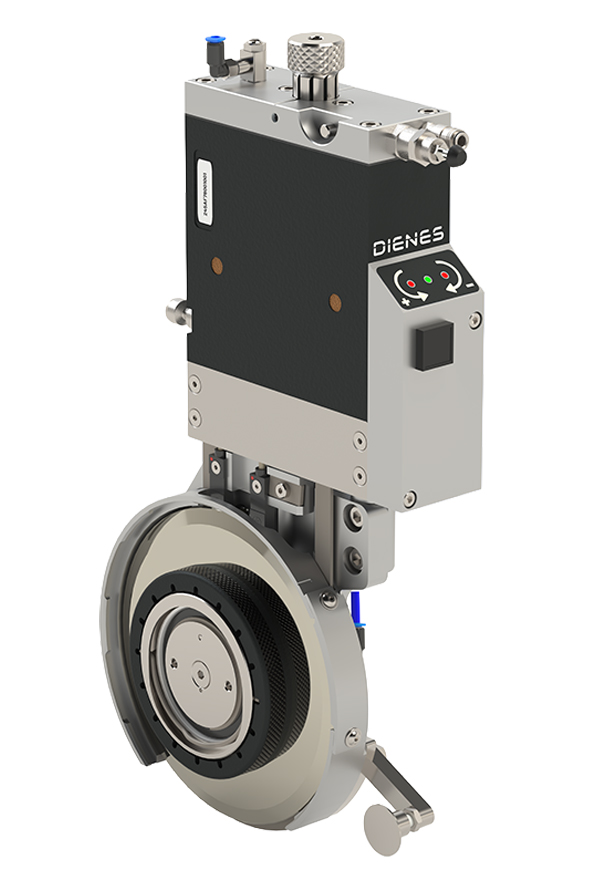

The DS5-150 Long Life Knife Holder combines a 150 mm knife platform with a minimum slit width of 55 mm (2.165″) and patented Constant Side Load Technology to maintain optimal side cutting force for improved slit quality and extended knife life. Featuring automatic knife diameter detection, LED depth adjustment, tool-free knife changes, and a backlash-free double-axis guide system, it delivers reliable, repeatable performance in high-speed film, plastics, and nonwoven converting applications up to 1,585 m/min (5,200 ft/min). The P3137-0004 offers a single airline configuration and the P3137-0003 offers a dual airline configuration.
DS5–150 Long Life Shear Cut Knife Holder
Two Year Warranty
- LED depth control
- Tool-less knife change
- Increased 4mm horizontal stroke
- Patented CSL-3 (Constant Side Load) technology for consistent cutting force, edge quality, and reduced dust
- Side load lockout pin
- 360° safety hand guard
- Optional suction hood
- Minimum Slit Width: 55 mm/2.17 in
- Knife Diameter: 150 mm/ 5.9055in
- Web Speed: 1,585 meters/min / 5.200 ft/min
Product Details
Additional information
| Dienes Holder Name | DS5–150–Long Life–1 |
|---|---|
| Dienes Part # | |
| Drawing Number | |
| Air Supply Lines | Single |
| spacer_1 | space_1 |

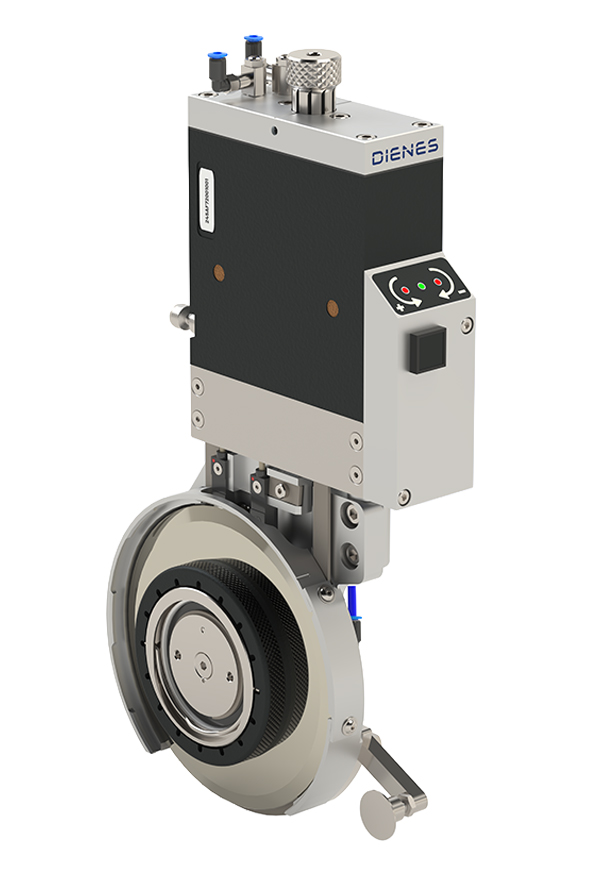

| Dienes Holder Name_2 | DS5–150–Long Life–2 |
| Dienes Part #_2 | P3137-0003 |
| Drawing Number_2 | 245AF72001001 |
| Air Supply Lines_2 | Dual |
| spacer_2 | spacer_2 |
| Minimum Slit Width Inches | |
| Minimum Slit Width Millimeters | |
| Maximum Web Speed ft/min | |
| Maximum Web Speed m/min | |
| Applications | |
| Knife Diameter | 150 mm (5.905”) |
