Item # | Item Name | Dienes Part # | |
---|---|---|---|
DF50-150 with LED assisted Overlap Feature Shear Cut Holder | P3136-0001 | ||
P3136-0001R | DF50-150 with LED assisted Overlap Feature Shear Cut Holder Right Hand Cut | P3136-0001R |

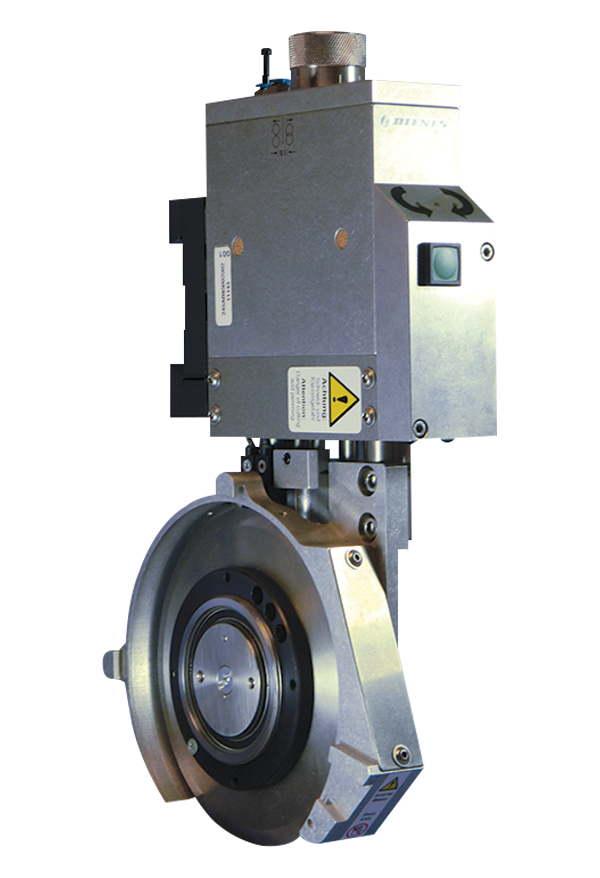

Shear Cut Knife Holder with LED Depth Set
One of the most problem some issues with shear cutting is the depth of the penetration of the male knife below the outer diameter of the female knife. Dienes has addressed this issue with a sensor which senses the diameter of the male knife and gives the operator an LED light which illuminates when the micrometer depth set wheel is turned to the exact location to insure proper overlap. A second indicator informs the operator the correct direction to turn the wheel. The solution abides by the K.I.S.S. philosophy. Keep It Simple S______. This feature can be applied to all Dienes knife holders.
Item # | Item Name | Dienes Part # | |
---|---|---|---|
10 | Lower Guard Housing | 245C605A01001 | |
20 | Knife Carrier | 245C100535020 | |
30 | Bushing | 021619 | |
40 | Axle | 021618 | |
50 | Intermediate Ring | 022018 | |
60 | Inner Cover | 245C070541010 | |
70 | Outer Cover | 245C070540010 | |
80 | Intermediate Plate | 245C030548010 | |
90 | Stepped Intermediate Plate | 245C040547040 | |
100 | Spacer | 245C070545020 | |
110 | Diaphragm | 022137 | |
120 | Circular Spring | 263C070034010 | |
130 | Washer | 021583 | |
140 | Retaining Ring | 021525 | |
150 | Retaining Ring | 021526 | |
160 | Socket Head Countersunk Screw | 651240 | |
170 | Grooved Pin | 651241 | |
180 | Brass Bearing Cage | 651242 | |
190 | Ball Bearing | 651254 | |
200 | Socket Head Countersunk Screw | 614104 | |
210 | Low Head Socket Cap Screw | 651250 | |
220 | Socket Cap Screw | 613558 | |
230 | Gasket | 651243 | |
240 | Intermediate Plate | 245C130531010 | |
250 | Ring Nut | 021638 | |
02134-09 | Air Hose Assembly (with Quick Disconnect) for DF-50-130 | 02134-09 | |
22057 | Replacement Circular Knife for DF-50-130, 52100 Material | 22057 | |
02178 | Replacement Circular Knife for DF-50-130, D2 Material | 02178 | |
021998 | Seal Kit for DF-50-130 | 021998 |
