Single Diameter

Industry: corrugated, paper & film converting
Applications: shaftless unwind

Our torque-activated expanding core chucks are equipped with sealed bearings and expansion jaws that expand using low torque. Automatic locking in both rotation directions. They can be used with cardboard, PVC or steel cores. The standard version (Model AROT) is available with spring loaded core ejector or with flange ejector. The standard version (model AROT) is available for 3” to 6” cores. The modular series (model TRM) is available for 3” to 12” cores.The simple design with no roller pins or springs will insure no jamming when conditions are not perfect, creating reliability and durability.

Request Info
Compare Products
Categories: ,

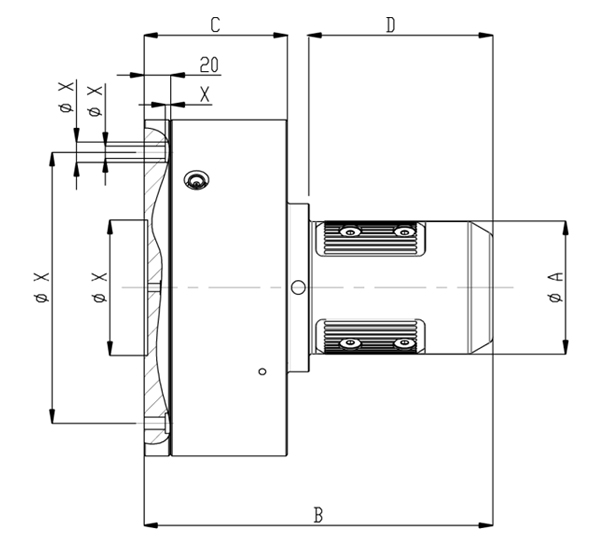

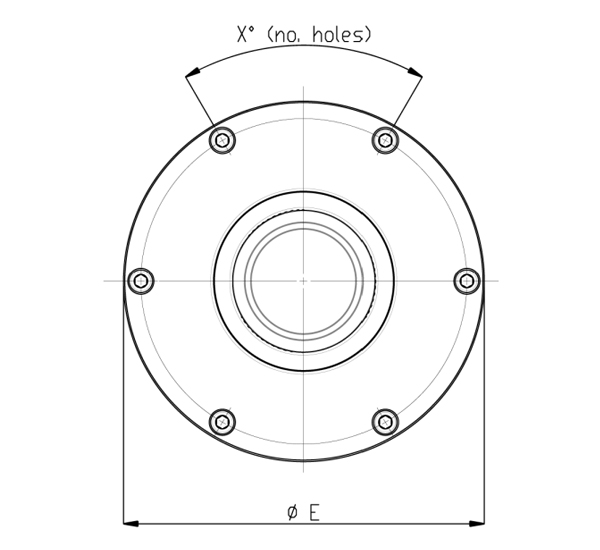

Code Core I.D. A
mm
B
mm
C
mm
D
mm
E
mm
Expansion
(mm)
Load
(Lbs) max
Torque
(Lb-in) max
X
mm
PNM.2.68-76 70-76mm 68,5 235 110 120 192 68,5-81 2000 3500 Upon request
PNM.2.68 70mm 68 215 100 110 192 68,5-78 2000 3500 Upon request
PNM.2.74 76mm 74 215 100 110 192 74,5-83,8 3000 5500 Upon request
PNM.2.98 100mm 98 215 100 110 192 98,5-107,5 4000 8000 Upon request
PNM.2.118 120mm 118 215 100 110 192 118,5-127,5 5000 12500 Upon request
PNM.2.123 125mm 123 215 100 110 192 123,5-132,5 7000 20000 Upon request
PNM.2.148 150/152mm 148 215 100 110 192 148,5-157 9000 40000 Upon request
