Dual Diameter

Industry: corrugated, paper & film converting
Applications: shaftless

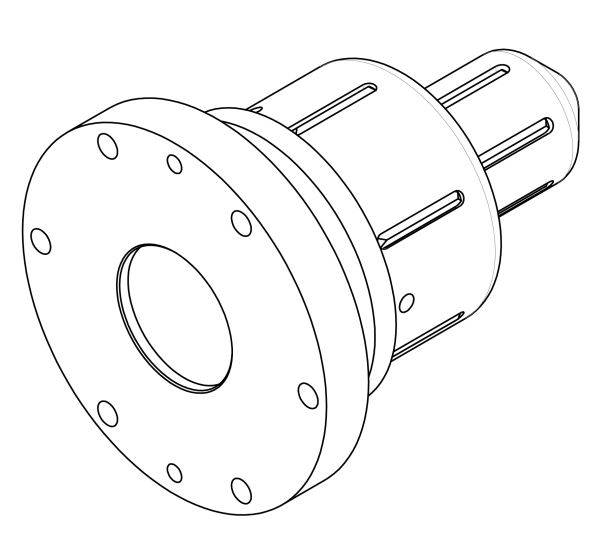

Heavy-duty mechanical chuck that uses machine arms side pressure to expand and grip the core. As the core sidewall presses against the stop flange on the outer housing of the chuck, the outer housing moves back while the lugs expand.

Request Info
Compare Products
Categories: ,

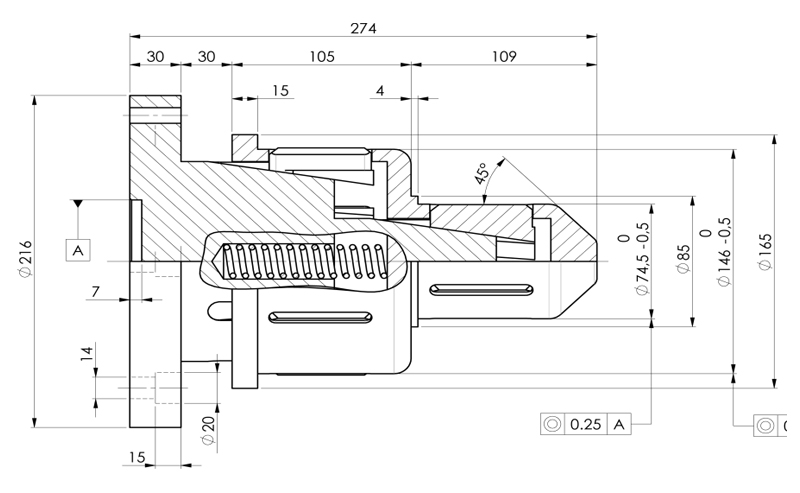

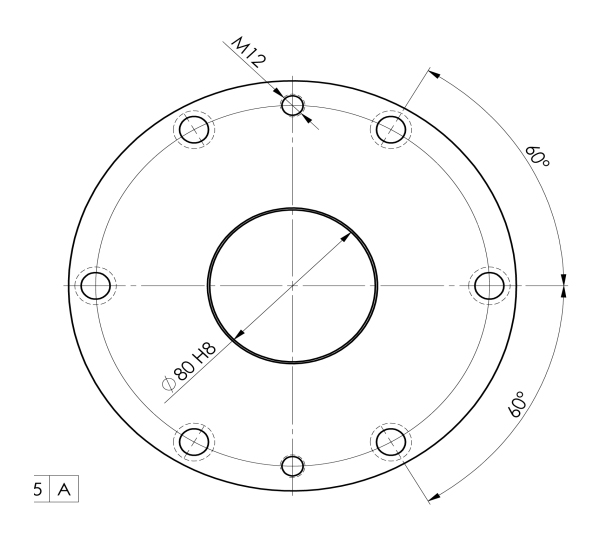

Code Core I.D. A'/A”
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Load
(Lbs) max
Torque
(Lb-in) max
X
mm
ACH.02.040.01 3”/4” 74,5/98 235 25 80 100 97 1700/6000 2200/10000 Upon request
ACH.02.060.01 3”/4” 74,5/14 274 30 105 216 97 3500/17000 2200/26000 Upon request

Additional information

Item #

Model

Providing Custom Quotes on All Products. At Your Request.
