Flange Ejector

Industry: corrugated, paper & film converting
Applications: shaftless

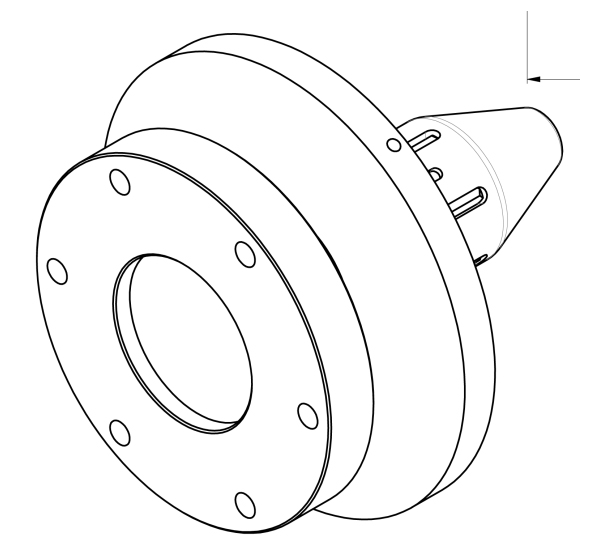

Heavy-duty mechanical chuck that uses machine arms side pressure to expand and grip the core. As the core sidewall presses against the stop flange on the outer housing of the chuck, the outer housing moves back while the lugs expand.

Request Info
Compare Products
Categories: ,

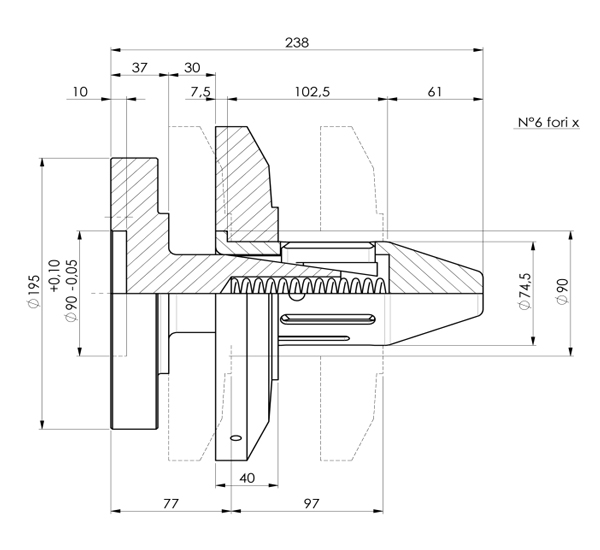

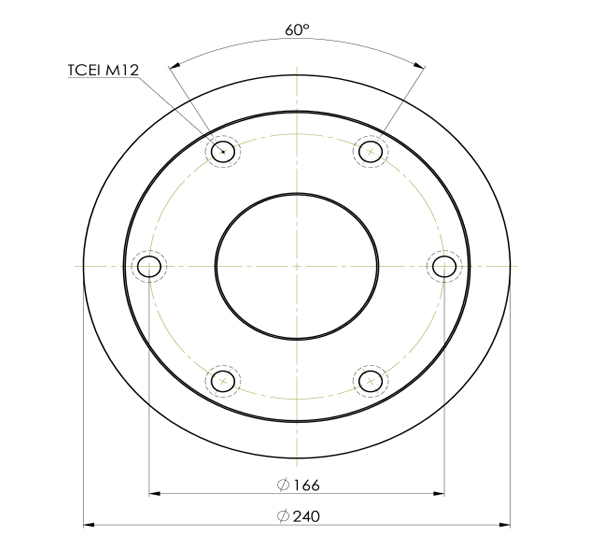

Code Core I.D. A'/A”
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Load
(Lbs) max
Torque
(Lb-in) max
X
mm
ACH.01.030.02 74/76mm 74,5 238 30 171 195 97 3000 2200 Upon request
ACH.01.040.02 100mm 98 238 30 171 195 97 6000 10000 Upon request
