Single Diameter

Industry: corrugated, paper & film converting
Applications: shaftless

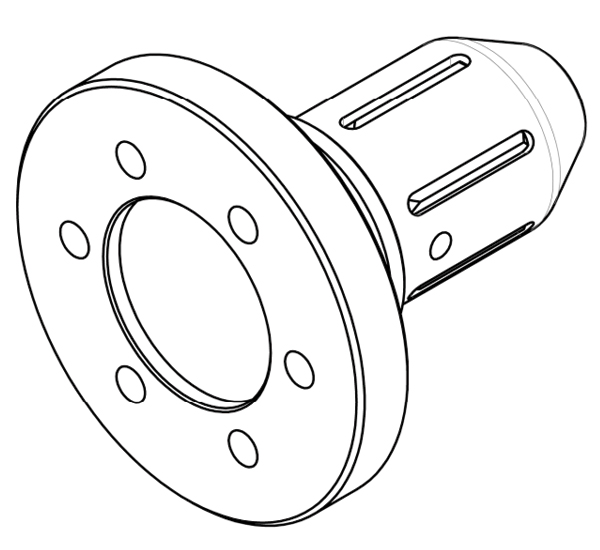

Heavy-duty mechanical chuck that uses machine arms side pressure to expand and grip the core. As the core sidewall presses against the stop flange on the outer housing of the chuck, the outer housing moves back while the lugs expand.

Request Info
Compare Products
Categories: ,

Code Core I.D. A
mm
B
mm
C
mm
D
mm
E
mm
Load
(Lbs) max
Torque
(Lb-in) max
X
mm
ACH.01.030.01 74/76mm 74,5 150 25 120 168 3000 2300 Upon request
ACH.01.040.01 100mm 98 150 25 120 198 6500 9750 Upon request
ACH.01.050.01 127mm 125 135 30 105 198 11000 22130 Upon request
ACH.01.060.01 150mm 148 135 30 105 216 17000 26550 Upon request
ACH.01.100.01 245mm 242 135 30 105 370 22000 106210 Upon request
ACH.01.120.01 300mm 297 135 30 105 418 34000 160000 Upon request

Additional information

Item #

Model

Providing Custom Quotes on All Products. At Your Request.
