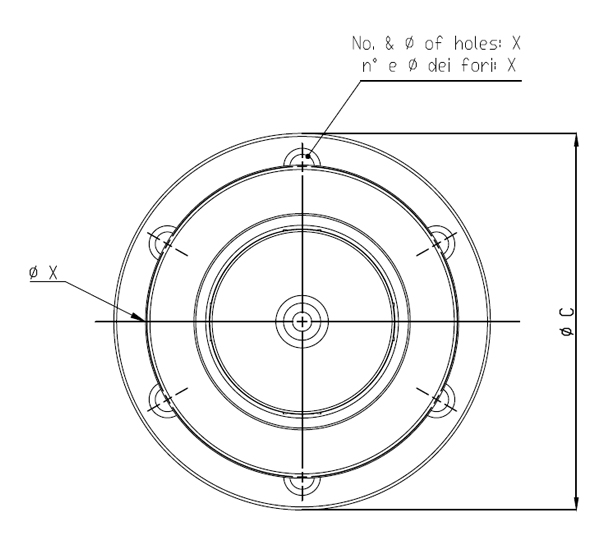

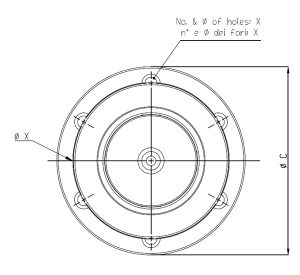

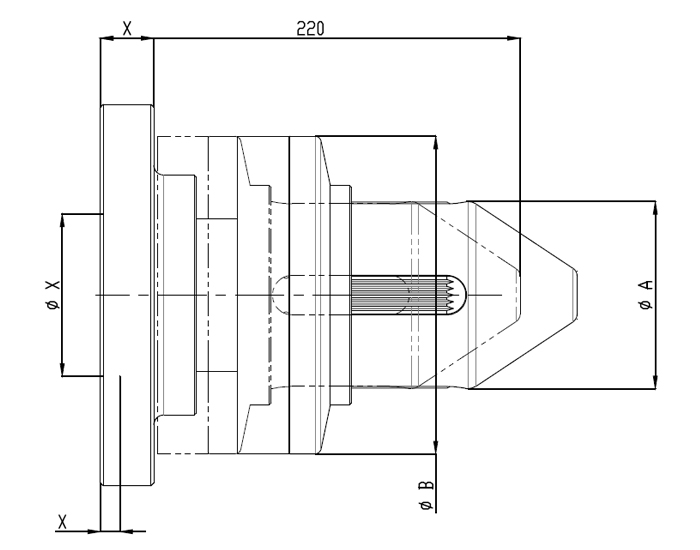

| Code | Core I.D. | A mm |
B mm |
C mm |
Load (Lbs) max |
Torque (Lb-in) max |
X mm |
|---|---|---|---|---|---|---|---|
| ASC.01.040.0 2 |
100mm | 98 | 167 | 216 | 6000 | 10000 | Upon request |
Single Diameter
Industry: corrugated
Application: shaftless unwinds
Our axial thrust “Sure-Chuck” (model “ASC”) is the top of our core chuck production range: It automatically resolves any reel clamping problems. Available in 4 inch only.
Categories: Styles, Axial Expansion - Model ASC
Additional information
| Item # | |
|---|---|
| Model |
