Flange Ejector

Industry: corrugated, paper & film converting
Applications: shaftless unwind

Our torque-activated expanding core chucks are equipped with sealed bearings and expansion jaws that expand using low torque. Automatic locking in both rotation directions. They can be used with cardboard, PVC or steel cores. The standard version (Model AROT) is available with spring loaded core ejector or with flange ejector. The standard version (model AROT) is available for 3” to 6” cores. The modular series (model TRM) is available for 3” to 12” cores.The simple design with no roller pins or springs will insure no jamming when conditions are not perfect, creating reliability and durability.

Request Info
Compare Products
Categories: ,

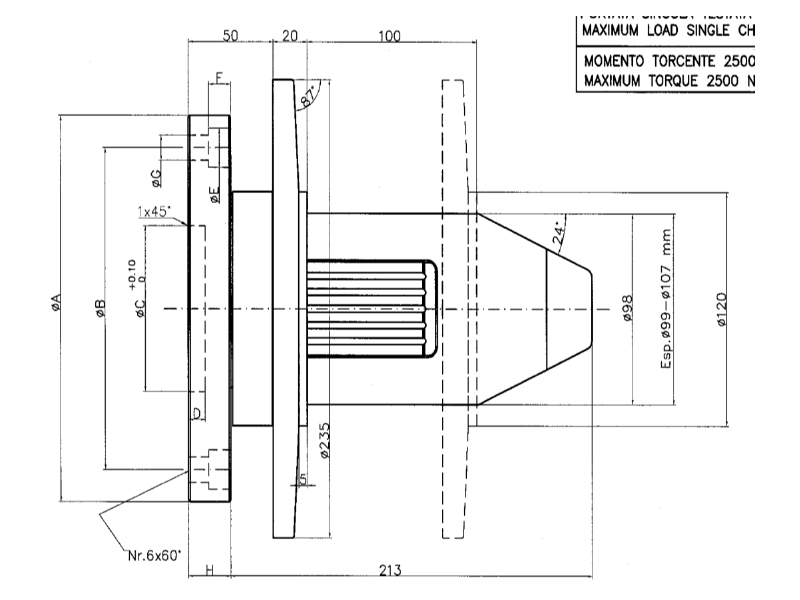

Code Core I.D. A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Load
(Lbs) max
Torque
(Lb-in) max
X
mm
AROT3FL 76mm 74,6 233 30 180 100 20 4000 10000 Upon request
AROT98FL 100mm 98 243 30 195 100 20 8000 22000 Upon request
AROT100FL 102mm 100 243 30 195 100 20 8000 22000 Upon request

Additional information

Item #

Model
