Single Diameter

Industry: corrugated, paper & film converting
Applications: shaftless unwind

Our torque-activated expanding core chucks are equipped with sealed bearings and expansion jaws that expand using low torque. Automatic locking in both rotation directions. They can be used with cardboard, PVC or steel cores. The standard version (Model AROT) is available with spring loaded core ejector or with flange ejector. The standard version (model AROT) is available for 3” to 6” cores. The modular series (model TRM) is available for 3” to 12” cores.The simple design with no roller pins or springs will insure no jamming when conditions are not perfect, creating reliability and durability.

Request Info
Compare Products
Categories: ,

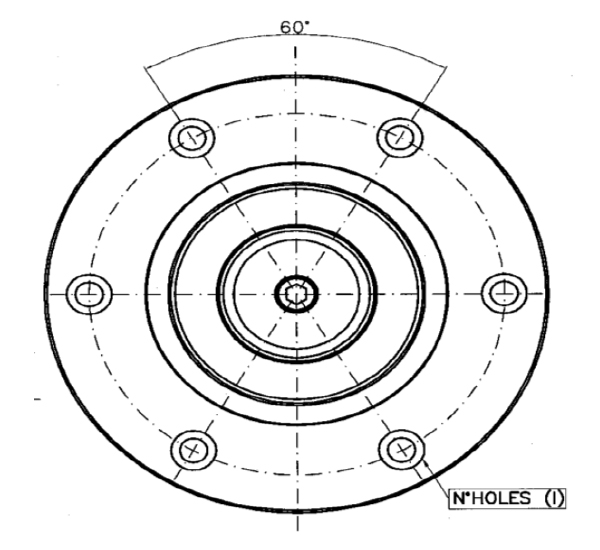

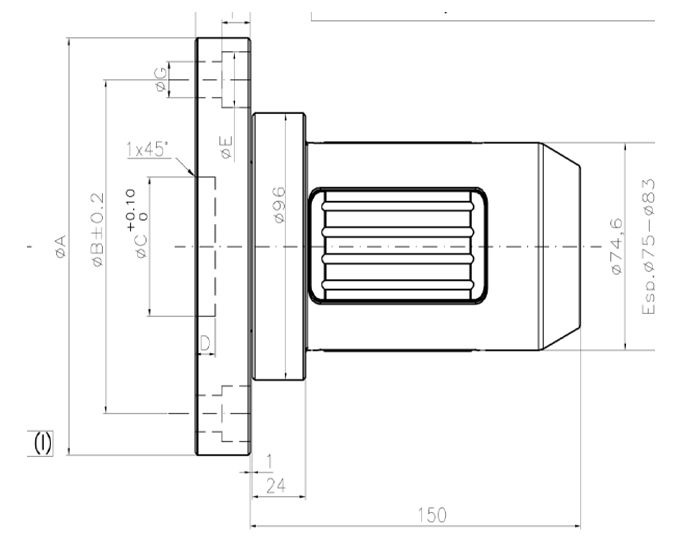

Code Core I.D. A
mm
B
mm
C
mm
D
mm
Expansion
(mm)
Load
(Lbs) max
Torque
(Lb-in) max
X
mm
AROT3 76mm 74,6 150 25 178 75-84 4000 10000 Upon request
AROT98 100mm 98 150 25 196 98,5-107 8000 22000 Upon request
AROT100 102mm 100 150 25 196 101,5-109 8000 22000 Upon request
AROT148 150mm 148 150 25 216 148,5-158 25000 44000 Upon request
AROT150 152mm 150 150 25 216 150,5-160 25000 44000 Upon request

Additional information

Item #

Model

Providing Custom Quotes on All Products. At Your Request.
