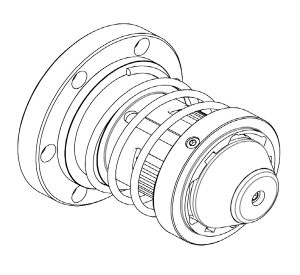

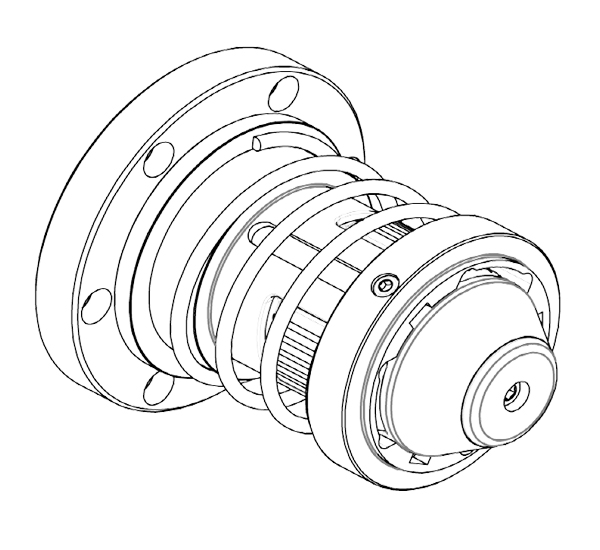

Spring Loaded Core Ejector

Industry: corrugated, paper & film converting
Applications: shaftless unwind

Our torque-activated expanding core chucks are equipped with sealed bearings and expansion jaws that expand using low torque. Automatic locking in both rotation directions. They can be used with cardboard, PVC or steel cores. The standard version (Model AROT) is available with spring loaded core ejector or with flange ejector. The standard version (model AROT) is available for 3” to 6” cores. The modular series (model TRM) is available for 3” to 12” cores.The simple design with no roller pins or springs will insure no jamming when conditions are not perfect, creating reliability and durability.

Request Info
Compare Products
Categories: ,

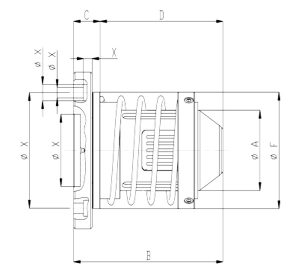

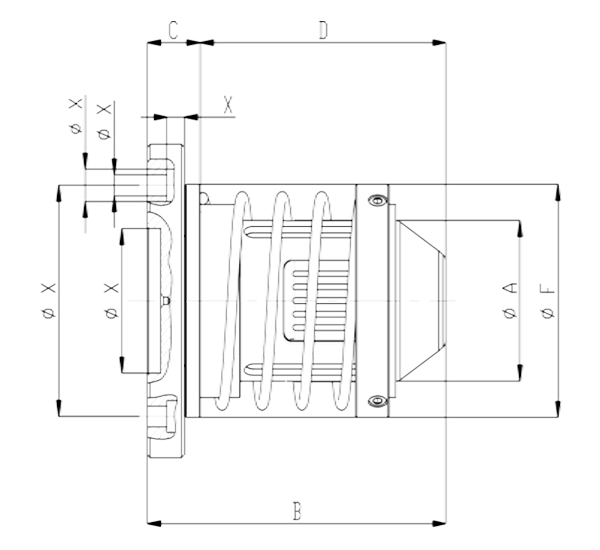

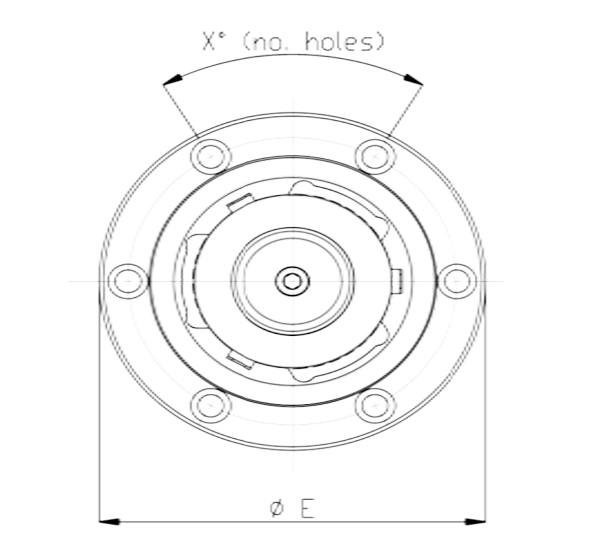

Code Core I.D. A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Expansion
(mm)
Load
(Lbs) max
Torque
(Lb-in) max
X
mm
AROT98ML 100mm 98 225 40 185 195 145 98,5-104,5 8000 22000 Upon request
AROT100ML 102mm 100 225 40 185 195 145 100,5-106 8000 22000 Upon request
