DishedKnives NEW

Dish Top Circular Knives

  • Highest cutting performance due to optimized surface quality
  • Exact manufacturing tolerances
  • Long knife life
Request Info Compare Products

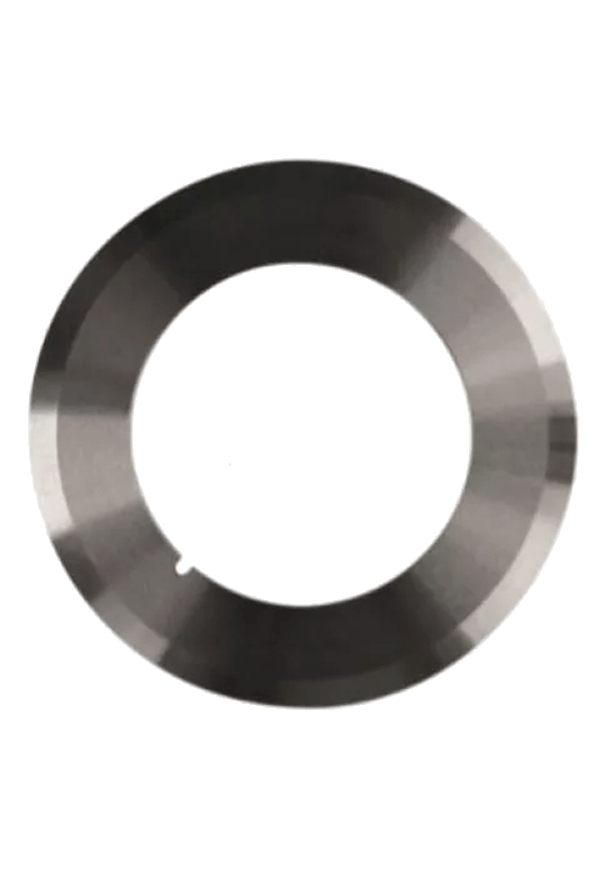

Dish Top Circular Knives

Product Details

Our dish top knives are manufactured from superior tool steels. These knives are made from a variety of metallurgies providing our customers the ideal balance between cost and knife life. With over 100 years of experience, DIENES has the expertise in heat treating and grinding to produce the very best dish top knives on the market.

Our slitting experts can recommend a variety of bevel configurations, single, double, or double hollow bevel to optimize cut quality. Polished, super finished, and proprietary coated knives are available to reduce adhesive build up and lessen dust generation as a result of the slitting action.. Dish top knives are stocked in a variety of configurations that fit a large number of OEM slitters to meet your requirements.

Item # Item Name Outside Diameter Inside Diameter Thickness Bevel Material Dimensions
02002-01 Dish Knives – Shear Cutting 62 mm 40 mm 1.2 mm Single 52100 2.441 x 1.575 x 0.047 in
02378 Dish Knives – Shear Cutting 62 mm 40 mm 0.8 mm Single 52100 2.441 x 1.575 x 0.031 in
22653 Dish Knives – Shear Cutting 62 mm 40 mm 0.6 mm Single 52100 2.441 x 1.575 x 0.074 in
22488 Dish Knives – Shear Cutting 62 mm 40 mm 0.6 mm Double Hollow 52100 2.441 x 1.575 x 0.074 in
021572 Dish Knives – Shear Cutting 65 mm 40 mm 0.6 mm Double Hollow 52100 2.559 x 1.575 x 0.074 in
02263 Dish Knives – Shear Cutting 64.29 mm 38.1 mm 1 mm Single 52100 2.531 x 1.500 x 0.039 in
02647 Dish Knives – Shear Cutting 64.29 mm 40 mm 1 mm Single 52100 2.531 x 1.575 x 0.039 in
02394 Dish Knives – Shear Cutting 75 mm 45 mm 1 mm Single 52100 2.953 x 1.771 x 0.039 in
02414 Dish Knives – Shear Cutting 75 mm 45 mm 0.6 mm Single 52100 2.953 x 1.771 x 0.074 in
02737 Dish Knives – Shear Cutting 75 mm 50 mm 1 mm Single 52100 2.953 x 1.969 x 0.039 in
021855 Dish Knives – Shear Cutting 75 mm 50 mm 1 mm Double Hollow 52100 2.952 x 1.969 x 0.039 in
02160-01 Dish Knives – Shear Cutting 89 mm 60 mm 1.2 mm Single 52100 3.504 x 2.362 x 0.047 in
22899 Dish Knives – Shear Cutting 90 mm 60 mm 1.2 mm Double Bevel Recessed 52100 3.543 x 2.362 x 0.047 in
021542 Dish Knives – Shear Cutting 90 mm 59.5 mm 0.8 mm Double 52100 3.543 x 2.343 x 0.031 (Bayonet Bore) in
22661 Dish Knives – Shear Cutting 100 mm 66.03 mm 0.8 mm Single 52100 3.937 x 2.600 x 0.031 in
22369 Dish Knives – Shear Cutting 100 mm 70 mm 0.8 mm Single 52100 3.937 x 2.756 x 0.031 in
22003 Dish Knives – Shear Cutting 100 mm 70 mm 1.2 mm Single 52100 3.937 x 2.756 x 0.047 in
02732 Dish Knives – Shear Cutting 100 mm 70 mm 1.2 mm Single D2 3.937 x 2.756 x 0.047 in
22045 Dish Knives – Shear Cutting 100 mm 70.05 mm 0.8 mm Single 52100 3.937 x 2.758 x 0.031 in
22006 Dish Knives – Shear Cutting 100 mm 70 mm 0.8 mm Double 52100 3.937 x 2.756 x 0.031 in
22073 Dish Knives – Shear Cutting 100 mm 70 mm 1.2 mm Double D2 3.937 x 2.756 x 0.047 in
02456 Dish Knives – Shear Cutting 100 mm 70 mm 1.2 mm Double Hollow 52100 3.937 x 2.756 x 0.047 in
22232 Dish Knives – Shear Cutting 100 mm 70 mm 1.2 mm Double Hollow D2 3.937 x 2.756 x 0.047 in
22004 Dish Knives – Shear Cutting 105 mm 65 mm 1.2 mm Single 52100 4.134 x 2.560 x 0.047 in
021830 Dish Knives – Shear Cutting 105 mm 65 mm 1.2 mm Single D2 4.134 x 2.560 x 0.047 in
22005 Dish Knives – Shear Cutting 105 mm 75 mm 1.2 mm Single 52100 4.134 x 2.953 x 0.047 in
02668 Dish Knives – Shear Cutting 105 mm 75 mm 1.2 mm Single D2 4.134 x 2.953 x 0.047 in
22008 Dish Knives – Shear Cutting 105.6 mm 81.05 mm 1.2 mm Single 52100 4.157 x 3.191 x 0.047 in
22008-10 Dish Knives – Shear Cutting 105.6 mm 81.05 mm 1.2 mm Double 52100 4.157 x 3.191 x 0.047 in
22007 Dish Knives – Shear Cutting 105 mm 65 mm 0.8 mm Double 52100 4.134 x 2.559 x 0.031 in
22138 Dish Knives – Shear Cutting 105 mm 75 mm 1.2 mm Double 52100 4.134 x 2.953 x 0.047 in
02437 Dish Knives – Shear Cutting 105 mm 75 mm 0.8 mm Double D2 4.134 x 2.953 x 0.031 in
02291 Dish Knives – Shear Cutting 105 mm 75 mm 1.2 mm Double D2 4.134 x 2.953 x 0.047 in
22417 Dish Knives – Shear Cutting 105.6 mm 81.05 mm 1.2 mm Double D2 4.157 x 3.191 x 0.047 in
22077 Dish Knives – Shear Cutting 105 mm 65 mm 0.8mm Double Hollow 52100 4.134 x 2.559 x 0.031 in
22490 Dish Knives – Shear Cutting 105 mm 75 mm 0.8mm Double Hollow 52100 4.134 x 2.953 x 0.031 in
22427 Dish Knives – Shear Cutting 105.61 mm 81.05 mm 1.2 mm Double Hollow 52100 4.157 x 3.191 x 0.047 in
02012-01 Dish Knives – Shear Cutting 105 mm 65 mm 1.2 mm Single 52100 4.134 x 2.559 x 0.047 (Bayonet Bore) in
02321 Dish Knives – Shear Cutting 120 mm 40 mm 1.2 mm Single 52100 4.724 x 1.575 x 0.047 in
22108 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Single 52100 5.118 x 3.149 x 0.059 in
22142 Dish Knives – Shear Cutting 130 mm 100 mm 1.5 mm Double 52100 5.118 x 3.937 x 0.059 in
22057 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Double 52100 5.118 x 3.149 x 0.059 in
02178 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Double D2 5.118 x 3.149 x 0.059 in
021948 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Double DPM 23 5.118 x 3.149 x 0.059 in
021844 Dish Knives – Shear Cutting 130 mm 100 mm 1.5 mm Double D2 5.118 x 3.937 x 0.059 in
22140 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Double Hollow 52100 5.118 x 3.149 x 0.059 in
22772 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Double Hollow D2 5.118 x 3.149 x 0.059 in
22010 Dish Knives – Shear Cutting 130 mm 100 mm 1.5 mm Double Hollow 52100 5.118 x 3.937 x 0.059 in
02013-01 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Single 52100 5.118 x 3.149 x 0.059 (Bayonet Bore) in
22108 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Single 52100 5.118 x 3.149 x 0.059 in
22108-10 Dish Knives – Shear Cutting 130 mm 80 mm 1.5 mm Single D2 5.118 x 3.149 x 0.059 in
22137 Dish Knives – Shear Cutting 130 mm 100 mm 1.5 mm Single 52100 5.118 x 3.937 x 0.059 in
02055-01 Dish Knives – Shear Cutting 140 mm 70 mm 3 mm Double 52100 5.512 x 2.756 x 0.118 in
021402 Dish Knives – Shear Cutting 140 mm 95 mm 2 mm Double 52100 5.512 x 3.740 x 0.078 in
02139-01 Dish Knives – Shear Cutting 140 mm 70 mm 3 mm Double D2 5.512 x 2.756 x 0.118 in
021563 Dish Knives – Shear Cutting 150 mm 80 mm 2.5 mm Double D2 5.906 x 3.149 x 0.098 in
021169 Dish Knives – Shear Cutting 150 mm 120 mm 1.1 mm Single 52100 5.906 x 4.724 x 0.043 in
02602 Dish Knives – Shear Cutting 150 mm 120 mm 2 mm Double 52100 5.906 x 4.724 x 0.078 in
22335 Dish Knives – Shear Cutting 150 mm 80 mm 2.5 mm Double 52100 5.906 x 3.149 x 0.098 in
021803 Dish Knives – Shear Cutting 150 mm 120 mm 1.5 mm Double D2 5.906 x 4.724 x 0.059 in
021819 Dish Knives – Shear Cutting 175 mm 70 mm 2.2 mm Single 52100 6.890 x 2.756 x 0.087 in
22618 Dish Knives – Shear Cutting 178 mm 130 mm 2 mm Double Hollow 52100 7.008 x 5.118 x 0.078 in
021359 Dish Knives – Shear Cutting 200 mm 80 mm 4 mm Double 52100 7.874 x 3.149 x 0.157 in
22009 Dish Knives – Shear Cutting 200 mm 120 mm 3.5 mm Double 52100 7.874 x 4.724 x 0.138 in
021359- 10 Dish Knives – Shear Cutting 200 mm 80 mm 4 mm Double D2 7.874 x 3.149 x 0.157 in
02292 Dish Knives – Shear Cutting 200 mm 120 mm 3.5 mm Double D2 7.874 x 4.724 x 0.138 in
