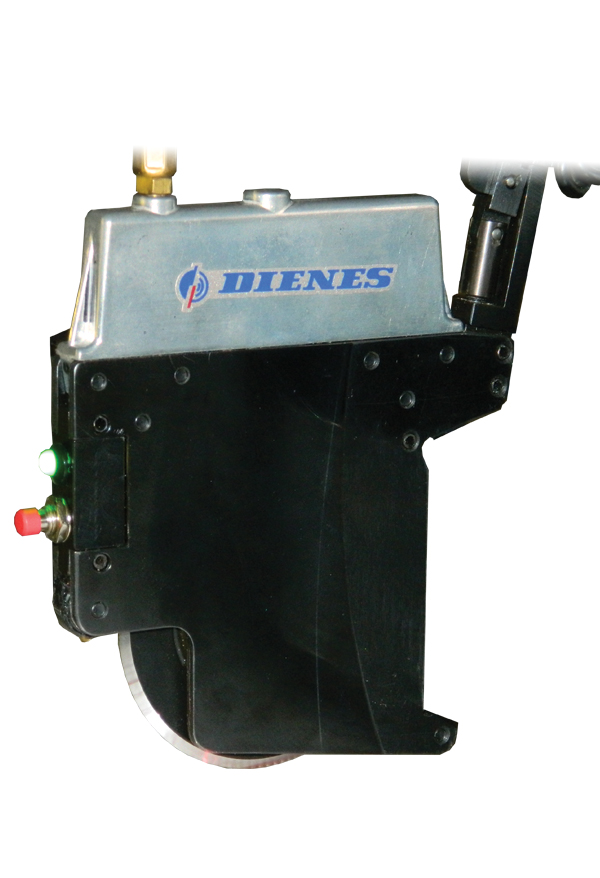

Laser Guided Score Cut Knife Holder

One Year Warranty

  • Laser light facilitates accurate crush knife positioning
  • Same mounting design and half-inch slit width as standard PQAS holder
  • Wear reduction due to precise alignment to the crosshead
  • Durability due to hardened side plates
  • Minimum Slit Width: 12.7 mm/ ½ (0.500) in
  • Knife Diameter: 76.2 mm/3.000 in
  • Web Speed: 950 ft/min
Request Info Compare Products

Laser Guided Score Cut Knife Holder

Product Details

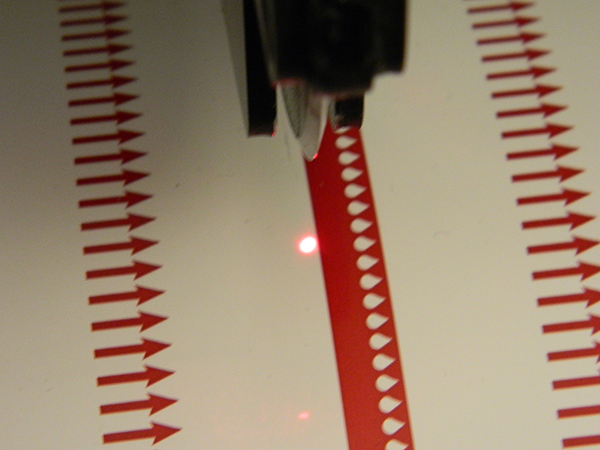

In response to customer inquiries to assure accurate crush knife positioning, DIENES has integrated a laser light onto their standard Model PQAS 1/2″ Quick-Clamp Crush Cutting knife holder. Utilizing a manual On-Off switch, the holder’s laser beam provides a focal point for operators to position the knife cutting tip to follow a web print or crease line. Finding the exact point to engage the knife cutting edge is now simple and fast.

PQAS-Laser knife holder retains the same mounting design and half-inch minimum slit width as the standard PQAS holder; making it directly exchangeable for upgrading your knife set-up arrangement.

Additional information

Dienes Part #

Drawing Number

Minimum Slit Width Inches

Minimum Slit Width Millimeters

Maximum Web Speed ft/min

Maximum Web Speed m/min


, , ,

Laser Guided Score Cut Knife Holder
