PQG Score Cut Knife Holder

One Year Warranty

  • Capable of withstanding up to 250 pounds of force at high speeds
  • Exact cutting widths due to the narrowest manufacturing tolerances
  • Used with multiple crushing, perforating and profiling knives
  • Minimum Slit Width: 114 mm/4.488 in
  • Knife Diameter: 150 mm/5.906 in
  • Web Speed: 2,500 ft/min
Request Info Compare Products

PQG Score Cut Knife Holder

Product Details

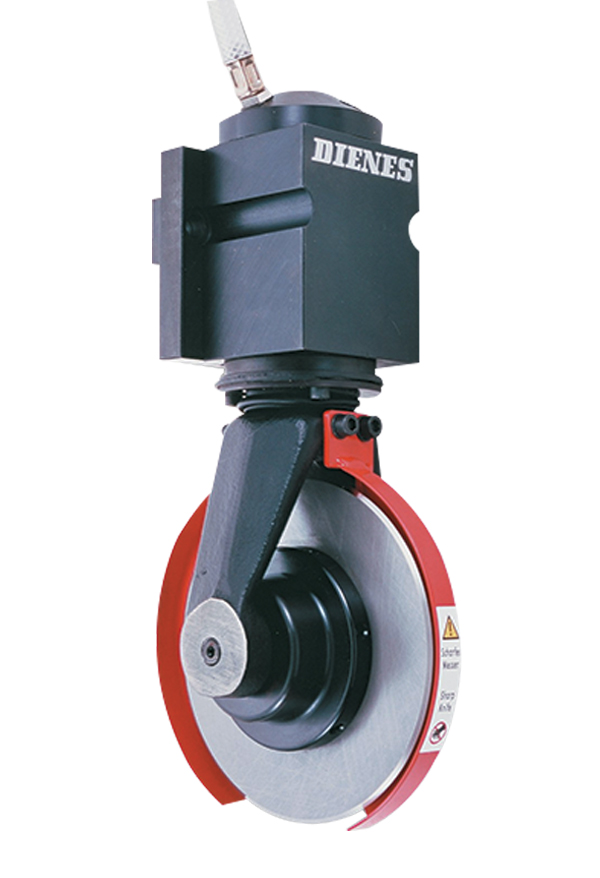

PQG Crush Cut knife holder, an outstanding slitter for many years, employs a double sealed ball bearing design capable of withstanding heavy loads up to 225 pounds of force at high speed. Slitting fiberglass, nonwoven materials, paper and films, PQG is capable of slitting down to 114 mm (4.48 in) minimum slit widths while sustaining speeds of 2,500 ft/min.

A modular design allows the holder to be mounted with a dovetail, tee bar, or a linear bearing. Custom design mountings are possible with the DIENES highly qualified engineering staff.

Additional information

Dienes Part #

Drawing Number

Minimum Slit Width Inches

Minimum Slit Width Millimeters

Maximum Web Speed ft/min

Maximum Web Speed m/min

Applications

, ,

Item # Item Name Dienes Part #
1 Holder Body 22547
2 Holder Fork 021327
3 Cylinder Cover 02620
4 Piston 021624
5 Adjustment Bushing 02093-09
6 Bellow 245B080578010
7 Ring 245B000579040
8 O-Ring 022180
9 Pressure Spring 02300
10 O-Ring 022181
11 Piston Seal 022179
12 Socket Cap Screw 022128
13 Washer 234E000028030
14 Retaining Ring 0D00471020001
15 Socket Cap Screw 613570
16 Knife Head 243A105001001
17 Crush Cut Knife 22020
18 Ring Nut 242F081A01001
19 Ball Bearing 02611
20 Distance Ring 021460
21 Distance Ring 021461
22 Ring Nut 02833
23 Bearing Sleeve 021462
24 Left Guard Assembly 243B318A01001
25 Right Guard Assembly 02425
26 Adapter 22747
27 Socket Cap Screw/Socket Cap Screw M6 0D00912006021
28 Lock Washer 0D00127006001
29 Screw 02864
30 Key 02736
31 Tension Pin 0D01481003005
32 Air Hose Assembly 02134
33 Hose 0FPNZUB006001
34 Male Connector 02172
35 Female Connector 02170
2014 Complete Knife Head Assembly 021694
02500 Spanner Wrench for PQG (2 required) 02500
02257 Replacement Blade (D2 Material) 02257
02151-09 Complete Seal Kit 02151-09
Item # Item Name Dienes Part #
02058-01 PQG Holder T-Bar Mount 02058-01
02058-10 PQG Holder Dovetail Mount 02058-10
