PSG16-105 Shear Cut Knife Holder

Two Year Warranty

  • Pneumatic knife holder for narrow cutting width
  • Significant increase in efficiency due to fast cutting width adjustment
  • Knife holder in right-hand and left-hand versions
  • Minimum Slit Width: 16mm/0.630 in
  • Knife Diameter: 105mm/4.134 in
  • Web Speed: 2,500 ft/min
Request Info Compare Products

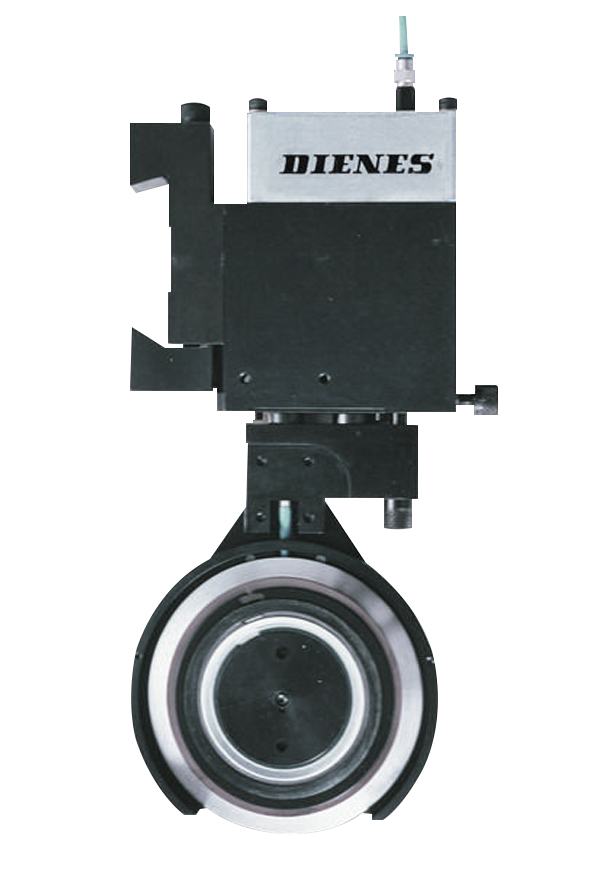

PSG16-105 Shear Cut Knife Holder

Product Details

The PSG-16 shear cut top knife holder is the narrowest pneumatic circular knife holder on the market today. You can cut narrow slit widths down to 16mm (0.630 in) without using top collar assemblies or staggered circular knife holders on separate mounting bars. Weighing only 2.1kg (4.6 lbs.), the PSG-16 is designed around the innovative and time tested DIENES zero clearance double axle guidance system which minimizes system vibration effects resulting in cleaner slits and longer circular knife life.

Features include choice of dovetail or linear bearing mounts, optional Easy-Set tab, operating speed up to 800 meters per minute (2,624 ft/min), and 105mm (4.134 in) diameter circular blade.

Additional information

Dienes Part #

Drawing Number

Minimum Slit Width Inches

Minimum Slit Width Millimeters

Maximum Web Speed ft/min

Maximum Web Speed m/min

Applications

, , ,

Item # Item Name Dienes Part #
1 Upper Holder Body 245C100400010
2 Adapter 245C09040101A
3 Pressure Cylinder 021780
4 Piston Assembly 021574
5 Knife Guard 245C12040901A
6 Adjustment Bracket 245A070434010
7 Dished Knife Blade 22138
8 Waved Bevel Spring 021522
9 Snap Ring 021524
10A Cant Angle Plate CZ1&4 Standard 021864
10B Cant Angle Plate CZ2&3 Optional 22677
11 Clamping Piece 245C00040401A
12 Set Screw 021576
13 Socket Cap Screw 613708
14 Washer 650014
15 Socket Cap Screw 0D00912005022
16 Bushing 021579
17 Knife Carrier 021580
18 Axle 021581
19 Cylinder Spring 021709
20 Depth Adj. Hand Screw 021632
21 Hand Screw 022326
22 Piston Rod 021582
23 Vertical Shaft 021577
24 Clamping Piece 021633
25 Slotted Machine Screw 021681
26 Slotted Machine Screw 021682
27 DU – Sleeve 021600
28 Ball Bearing 02509/22509/651254
29 Snap Ring 22070
30 Retaining Ring 021526
31 Washer 021583
32 Airzet PR30 021584
33 Airzet PR15 021585
34 Nipple M3 021797
35 Socket Cap Screw 613728
36 Pressure Hose 021753
37 Cylinder Spring 021252
38 Dowel Pin 654239
39 Washer 021801
40 Air Hose Assembly 02041-09
41 ES-Tab Assembly 021374
42 Male/Female Adapter 022198
Item # Item Name Dienes Part #
021123 PSG-16 Dovetail Mount Shear Cut Holder 021123

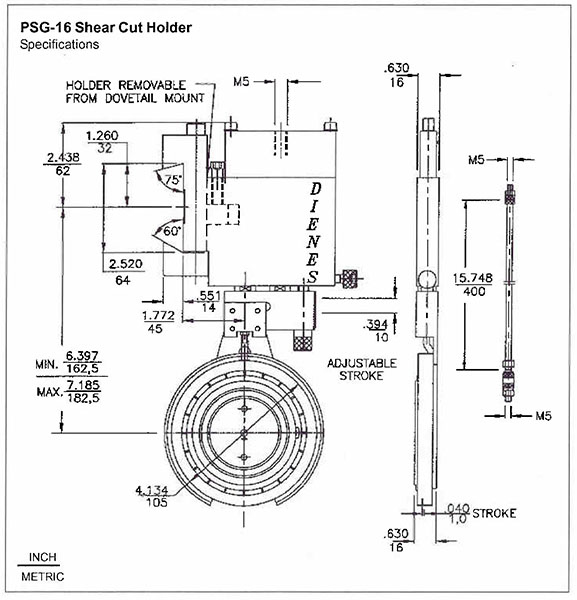

PSG-16 Shear Cut Knife Holder Drawings
PSG-16 Shear Cut Knife Holder STEP
