The DS5-150 Long Life A.Celli Replacement Knife Holder provides a seamless upgrade path for A.Celli slitting systems, allowing converters to benefit from DIENES Long Life technology while maintaining existing machine layouts. Combining a 150 mm knife platform, a 60 mm minimum slit width, patented Constant Side Load Technology, and a A.Celli-style link pin for simplified manual alignment, it improves slit quality, extends knife life, and enhances process consistency. Additional features include automatic knife diameter detection, LED depth adjustment, tool-free knife changes, and a backlash-free double-axis guide system for reliable operation at web speeds up to 1,585 m/min (5,200 ft/min).

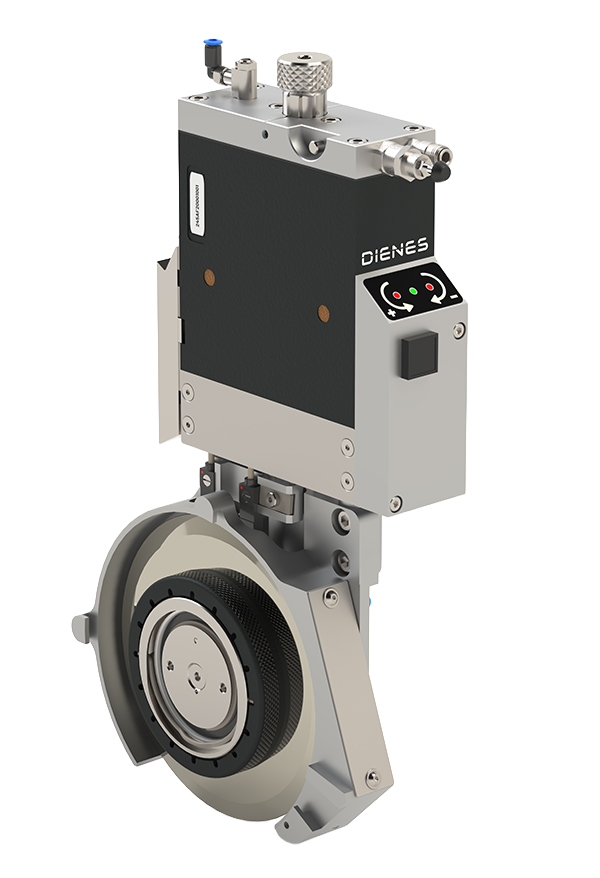

DS5–150 Long Life – A.Celli Replacement Shear Cut Knife Holder
Two Year Warranty
- LED depth control
- Tool-less knife change
- Increased 5mm horizontal stroke
- Patented CSL-3 (Constant Side Load) technology for consistent cutting force, edge quality, and reduced dust
- Side load lockout pin
- 360° safety hand guard
- Optional suction hood
- Minimum Slit Width: 60 mm/2.36 in
- Knife Diameter: 150 mm/ 5.9055in
- Web Speed: 1,585 meters/min / 5.200 ft/min
Product Details
Additional information
| Dienes Holder Name | DS5–150-Long Life–A.Celli Replacement |
|---|---|
| Dienes Part # | |
| Drawing Number | |
| Air Supply Lines | Single |
| Minimum Slit Width Inches | |
| Minimum Slit Width Millimeters | |
| Maximum Web Speed ft/min | |
| Maximum Web Speed m/min | |
| Applications | |
| Knife Diameter | 150 mm (5.905”) |
