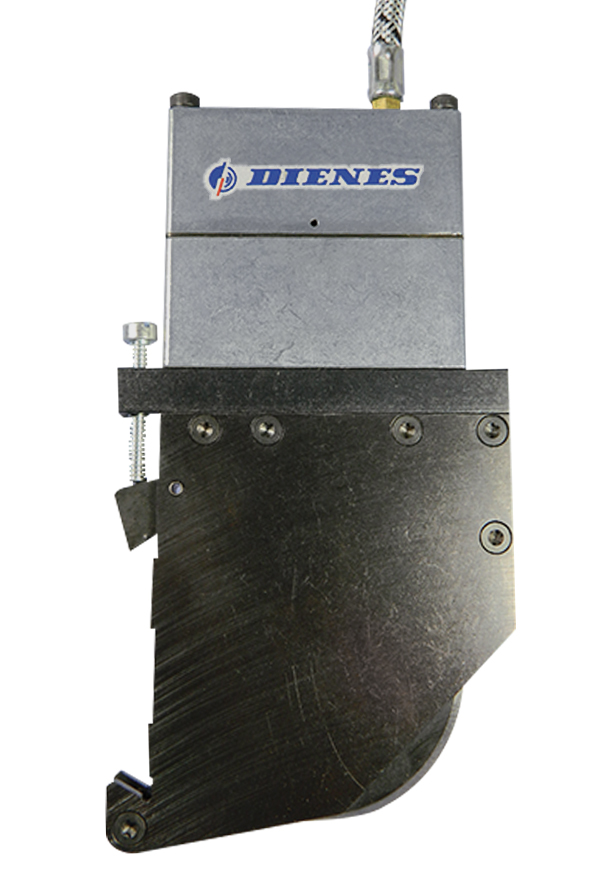

PQA-MC-HP Double Cylinder Score Cut Knife Holder

One Year Warranty

  • Nearly double the cutting force of single cylinder holders
  • For heavy-duty applications, such as sandpaper, leather, flooring, and roofing materials
  • Exact cutting widths due to the narrowest manufacturing tolerances
  • Minimum Slit Width: 12.7 mm/ ½ (0.500) in
  • Knife Diameter: 76.2 mm/3.00 in
  • Web Speed: 950 ft/min
Request Info Compare Products

PQA-MC-HP Double Cylinder Score Cut Knife Holder

Product Details

DIENES’ unique double cylinder pneumatic crush/score cut holder is for heavy duty, narrow-width (½ in) applications. This narrow width slitter develops nearly double the cutting force of single cylinder holders, employs the same mounting dimensions as all the DIENES PQAS style holders and can be interchanged on the same dovetail bars. PQA-MA-HP holders come standard with the same pneumatic connections DIENES offers on all PQAS style holders.

This model is unique in that the pneumatic cylinders are stacked in tandem to deliver high cutting forces. The PQAS-MC-HP holders are able to produce 135 pounds force when 90 PSI is applied to the holder and rated to run up to web speeds of 950 ft/min. This high force knife holder is capable of slitting high strength materials including sand paper, leather, flooring, and roofing materials.

Additional information

Dienes Part #

Drawing Number

Minimum Slit Width Inches

Minimum Slit Width Millimeters

Maximum Web Speed ft/min

Maximum Web Speed m/min

Applications

, , , ,

Item # Item Name Dienes Part #
1 Pressure Cylinder 02428
2 Pressure Cylinder 02426
3 Pressure Piston 02666
4 Pressure Piston 021314
5 Intermediate Piece 02176
6 Intermediate Piece 02390
7 Right Side Plate N/A
8 Left Side Plate N/A
9 Knife Fork 02389
10 Crush Cut Blade 02442
11 Bearing Pin 02045-09
12 Clamp Plate 02216
13 Intermediate Plate 02094-09
14 Threaded Pin 02705
15 Washer 615724
16 Clamping Element 02237
17 Pressure Spring 02039-09
18 Ball Bearing 02698
19 O-Ring 02834
20 Fillister Head Screw 021743
21 Countersunk Screw 02590
22 Socket Cap Screw 22565
23 Pin 02777
24 Countersunk Screw 02095-09
25 Distance Ring 02038-09
26 Gasket 02087-09
27 Supplementary Plate 02667
28 Hose Assembly 02041-09
29 Female Coupling 02120-09
30 Conn, w/o Coupling 02041
02256 Replacement Blade (D2) for PQA-MC-HP 02256
Item # Item Name Dienes Part #
02024-01 PQA-MC-HP Double Cylinder Holder 02024-01
PQA-MC-HP Holder Parts List
PQA-MC2 Drawings
PQA-MC2 STEP
PQA-MC3 Drawings
PQA-MC3 STEP
