PQAS 3/8″ Score Cut Knife Holder

One Year Warranty

  • Exact cutting widths due to the narrowest manufacturing tolerances
  • Wear reduction through precise alignment to the crosshead
  • Designed for cutting adhesive tape and suitable for most standard applications
  • Quick clamp and easy eject
  • Minimum Slit Width: 9.53 mm/⅜ (0.375) in
  • Knife Diameter: 76.2 mm/3.000 in
  • Web Speed: 950 ft/min
Request Info Compare Products

PQAS 3/8″ Score Cut Knife Holder

Product Details

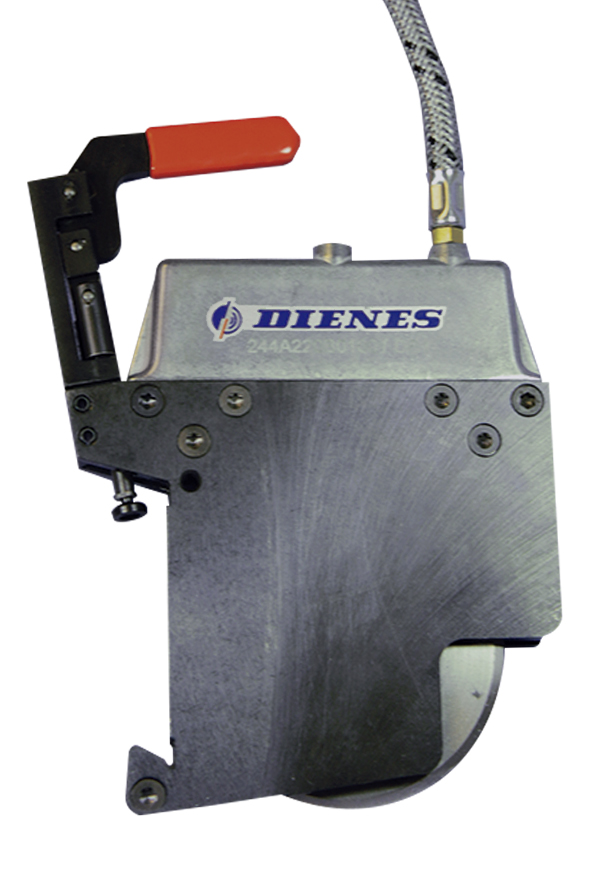

PQAS ⅜” knife holder offers the quality and ruggedness you have come to expect from 100 years of DIENES ingenuity. PQAS employs the same mounting dimensions as all of the DIENES PQAS style holders and can be interchanged on the same dovetail bars. PQAS score cut holders come standard with the same pneumatic connections Dienes offers on all PQAS style holders.

This holder is able to produce 55 pounds of force when 90 PSI is applied to the holder and are rated to run up to web speeds of 950 ft/min. PQAS ⅜ holder is capable of slitting down to ⅜ inch (0.375 inches) slit widths whether slitting paper, film, foils or tapes.

Additional information

Dienes Part #

,

Drawing Number

Minimum Slit Width Inches

Minimum Slit Width Millimeters

Maximum Web Speed ft/min

Maximum Web Speed m/min

Applications

, ,

Item # Item Name Dienes Part #
1 Pressure Cylinder 02152-09
2 Gasket (Bladder) 02042-09
3 Side Plate (R. Hand) N/A
4 Side Plate (L. Hand) N/A
5 Intermediate Piece 021208
6 Knife Fork 02153-09
7 Knife 02731
8 Bearing Pin 02043-09
9 Distance Ring 02133-09
10 Pressure Spring 02039-09
11 Countersunk Screw 02132-09
12 Ball Bearing (19 mm) 02591
13 Rivet 02776
14 Quik-Clamp™ 021259
15 Screw 021087
16 Clamping Tension Pin 021317
17 Clamp Body 021086
18 Screw 02154-09
19 Clamp Assembly 022153
20 Quick Disconnect 02080-09
21 Hose Assembly (Type 3) 02298-09
22 Hose 02041
23 Quick Disconnect 1/8 NPT 02120-09
23 Quick Disconnect G1/8 02120-10
24 Hose Assembly (Type 1) 02041-09
25 Hose (Type 3) 02298
26 Clamping Arm 021087
27 Male Connector 02147-09
28 Male Snap Connector 02358
02731 Replacement Blade 02731
021605 Thin Rimmed Replacement Blade 021605
021562 D2 Replacement Blade 021562
PQAS ⅜" Holder Parts List
PQAS ⅜" Quick Clamp Drawings
PQAS ⅜" Quick Clamp STEP
PQAS ⅜" Screw Fixing Drawings
PQAS ⅜" Screw Fixing STEP
