DF50-130 Shear Cut Knife Holder

Two Year Warranty

  • Superior quality even with difficult material and high speeds
  • Reproducible knife setting forces that can be adapted to cutting material
  • Double guide ensures high stability
  • Separate compressed air supply for vertical and horizontal movement
  • Maximum flexibility due to various holder options
  • Minimum Slit Width: 50 mm/1.969 in
  • Knife Diameter: 130 mm/5.118 in
  • Web Speed: 4,500 ft/min
Request Info Compare Products

DF50-130 Shear Cut Knife Holder

Product Details

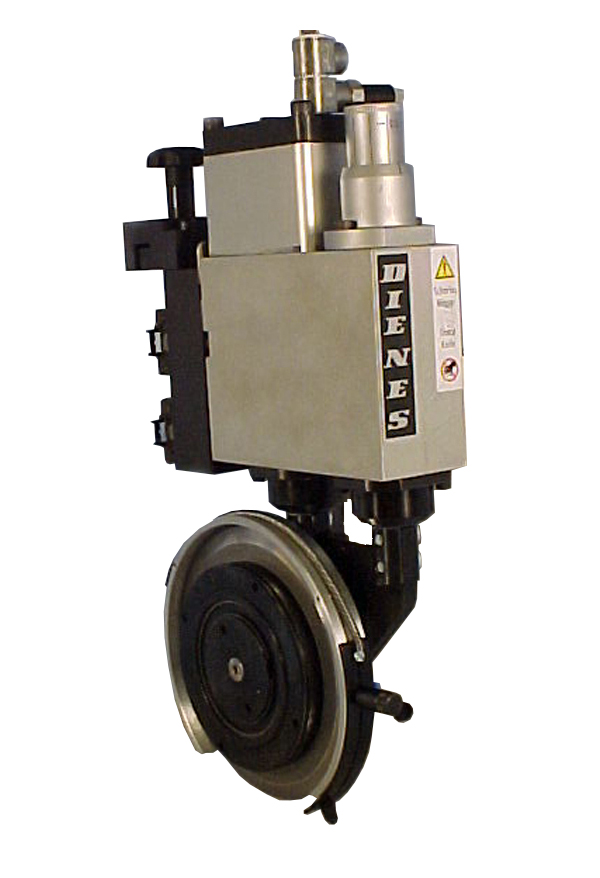

The DF50-130 shear cut top knife holder is a high speed pneumatic circular knife holder designed for light to medium paper and all non-woven materials. You can cut widths down to 50 mm (1.969 in) at web speeds of up to 2,000 m/min (4,500 ft/min). The DF50-150 is designed around the innovative and well proven DIENES zero-clearance double-shaft guidance system for vibration damping and maximizing top knife holder rigidity which results in cleaner slits and longer circular knife life. A micrometer adjustment device allows for precise depth control setting to ensure the highest slitting quality. This top knife holder also includes a pneumatically adjustable side force control for the precision ball bearing guided lower head in order to maximize knife life and edge cut quality.

DF50-130 features include choice of dovetail or linear bearing mounts, precision cant angle plates, 360 degree blade guard, quick change lower circular knife head, optional Easy-Set tab, optional oil wick, 130 mm (5.118 in) diameter circular blade.

Additional information

Dienes Part #

Drawing Number

Minimum Slit Width Inches

Minimum Slit Width Millimeters

Maximum Web Speed ft/min

Maximum Web Speed m/min

Applications

, , , , ,

Item # Item Name Dienes Part #
P3130-0001 DF50-130 Dovetail Mount Shear Cut Holder P3130-0001
P3130-0002 DF50-130 Linear Bearing Mount Shear Cut Holder P3130-0002
P3130-0003 DF50-130 Center Linear Bearing Mount Shear Cut Holder P3130-0003
