PSG-50 Shear Cut Knife Holder

Two Year Warranty

  • Optimal quick-change head system for reduced setup time
  • Stable design
  • Minimum Slit Width: 50 mm/1.969 in
  • Knife Diameter: 130 mm/5.118 in
  • Web Speed: 4,000 ft/min
Request Info Compare Products

PSG-50 Shear Cut Knife Holder

Product Details

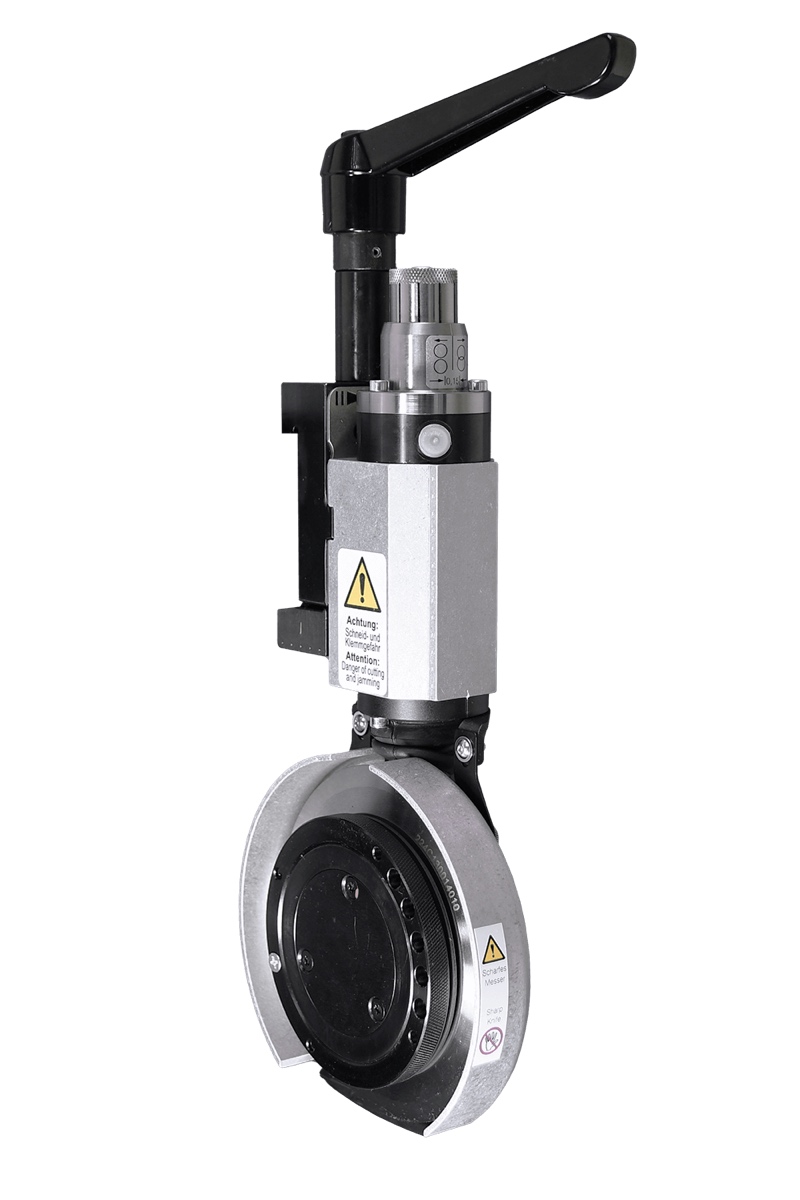

The PSG-50 shear cut holder has interchangeable mounts for any mounting configuration. Constructed with hardened, precision ground shafting and heavy-duty bearings, this time-proven knife holder will provide years of reliable cutting action. PSG-50 knife holder features include 50MM (1.969 in) wide body, 5.118 in (130 mm) diameter blade, 4,000 ft/min speed rating, micrometer adjustable knife depth, air pressure activated horizontal stroke with adjustable stop and spring side force level for bottom knife contact, right and left hand slitting, shear angle plates, quick change head and optional easy-set tab.

Additional information

Dienes Part #

Drawing Number

Minimum Slit Width Inches

Minimum Slit Width Millimeters

Maximum Web Speed ft/min

Maximum Web Speed m/min

Applications

, , , , ,

Item # Item Name Dienes Part #
1 Holder Housing 22635
2 Vertical Shaft 02677
3 Protective Cap 245C050771010
4 Adjustment Sleeve 02725
5 Piston 02235
6 Pressure Spring 02419
7 Nut 245C030530020
8 Cylinder Cover 245C050770010
9 Washer 234E020061010
10 Washer 234E030036030
11 Socket Head Cap Screw 613512
12 Socket Head Cap Screw 613522
13 Piston Seal 021611
14 Rod Seal 021612
15 O-Ring 022182
16 O-Ring 022183
17 Retaining Ring 02248
18 Rod Seal 02813
19 Socket Head Cap Screw 617218
20 Gasket 022126
21 Bellow 02157-09
22 Retaining Ring 022129
23 O-Ring 650779
24 Axle 021863
25 Cover 021938
26 Hub 245C100686020
27 Ball Bearing 021471
28 Retaining Ring 021452
29 Button Head Flange Cap Screw 613376
30 Set Screw 614752
31 Retaining Ring 021850
32 Piston Seal 021611
33 Pressure Spring 653355
34 Washer 234E000039100
35 Retaining Ring 651773
36 Knife Carrier 245C100685010
37 Bellville Spring 021716
38 Washer 021946
39 Snap Ring 02839
22057 Replacement Circular Knife for PSG-50, 52100 Material 22057
02049-09 Complete Seal Kit for PSG-50 02049-09
Item Name Dienes Part #
PSG-50 Shear Cut Holder P3070
PSG-50-130 Shear Cut Knife Holder Drawings
PSG-50-130 Shear Cut Knife Holder STEP

PSG-50 Shear Cut Knife Holder
