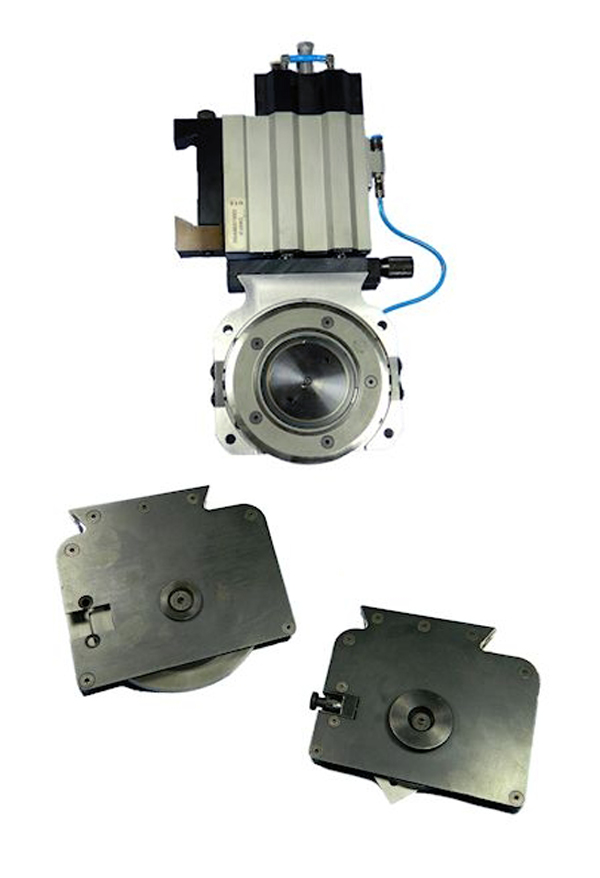

DF19 Shear, Crush, & Razor Cut Knife Holder

Two Year Warranty

  • Reproducible knife setting forces that can be adapted to cutting material
  • Double guide ensures high stability

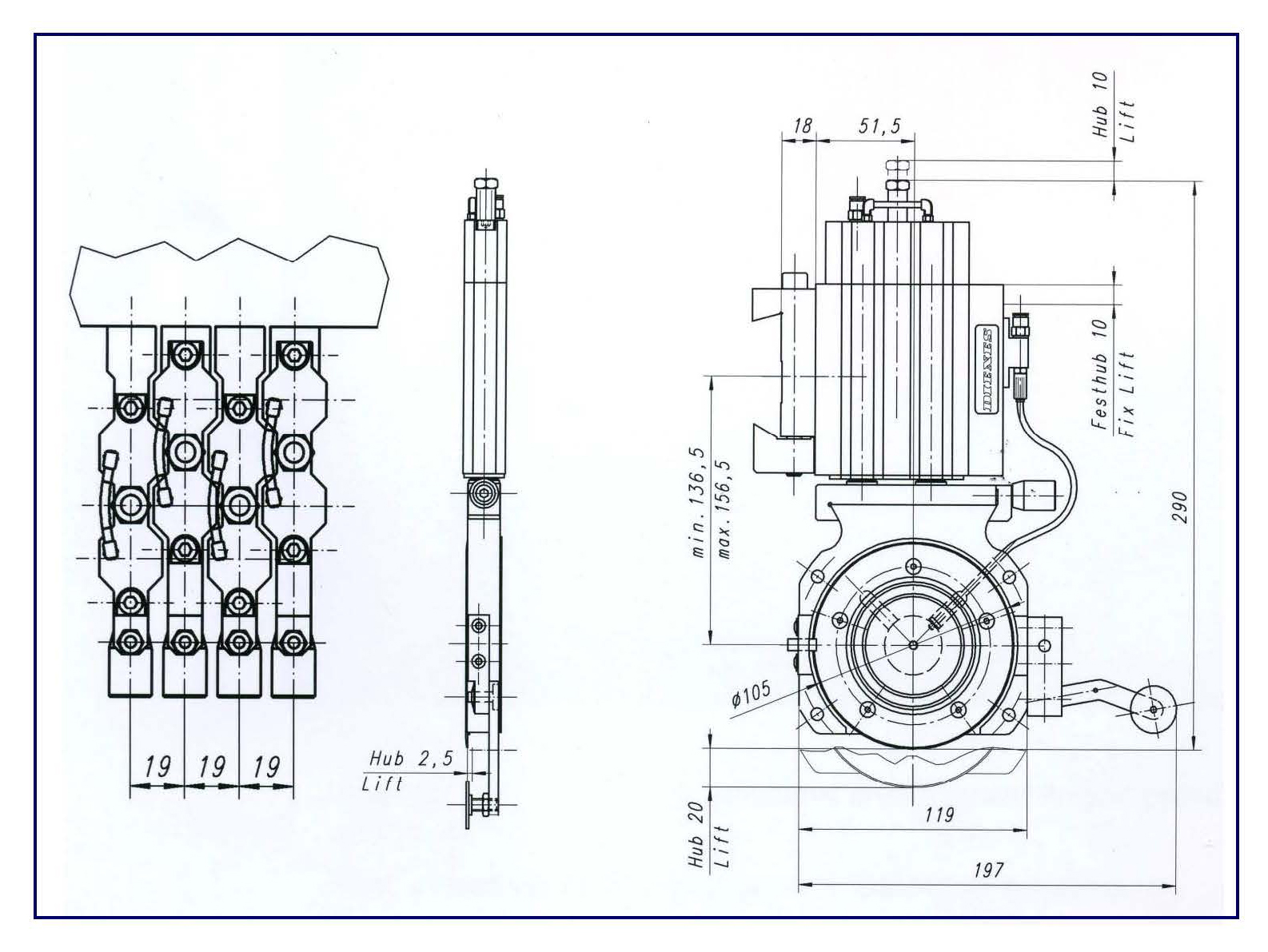

  • Narrow cutting widths due to knife holder nesting
  • Quick-change head system for reduced setup time
  • Accident-proof scaled knife overlap setting
  • Multiple adapter types for universal application
  • Minimum Slit Width: 19 mm/0.748 in
  • Knife Diameter: 105 mm/4.134 in
  • Web Speed: 2,500 ft/min
Request Info Compare Products

DF19 Shear, Crush, & Razor Cut Knife Holder

Product Details

DIENES DF19 shear knife holder provides zero-clearance vertical and horizontal stroke support for exceptional blade stiffness in operation. Slit widths to 19 mm (0.748 in) are possible. Originally developed for the aluminum foil industry, with a rigid flat blade, the DF19 also has a dish blade design for synthetic and other softer materials.

Recent advancements have included interchangeable, quick replacement lower heads for replacing dull blades, or if crush cutting or razor slitting is preferred over shear slitting for a particular web material. A simple Turn Knob release allows knife head changes with the knife body remaining on the machine.

Additional information

Dienes Part #

Drawing Number

Minimum Slit Width Inches

Minimum Slit Width Millimeters

Maximum Web Speed ft/min

Maximum Web Speed m/min


, , , ,

DF19 Technical Bulletin
DF19 Technical Specifications
DF19 P3105-0005 Dish Drawings
DF19 P3105-0005 Dish STEP
DF19 P3105-0006 Dish Drawings
DF19 P3105-0006 Dish STEP
DF19 P3105-0013 Flat Drawings
DF19 P3105-0013 Flat STEP
DF19 P3105-0016 Flat Drawings
DF19 P3105-0016 Flat STEP
